- Pametni Bluetooth
- Niska temperatura Cut Off
- Mini
Humsienk ORIGIN 12V 314Ah Mini LiFePO4 baterija (200A BMS)
Tax & shipping included
- Mega 4kWh energije U ultra mini veličini, u potpunosti zadovoljava vaše poludnevne potrebe za energijom.

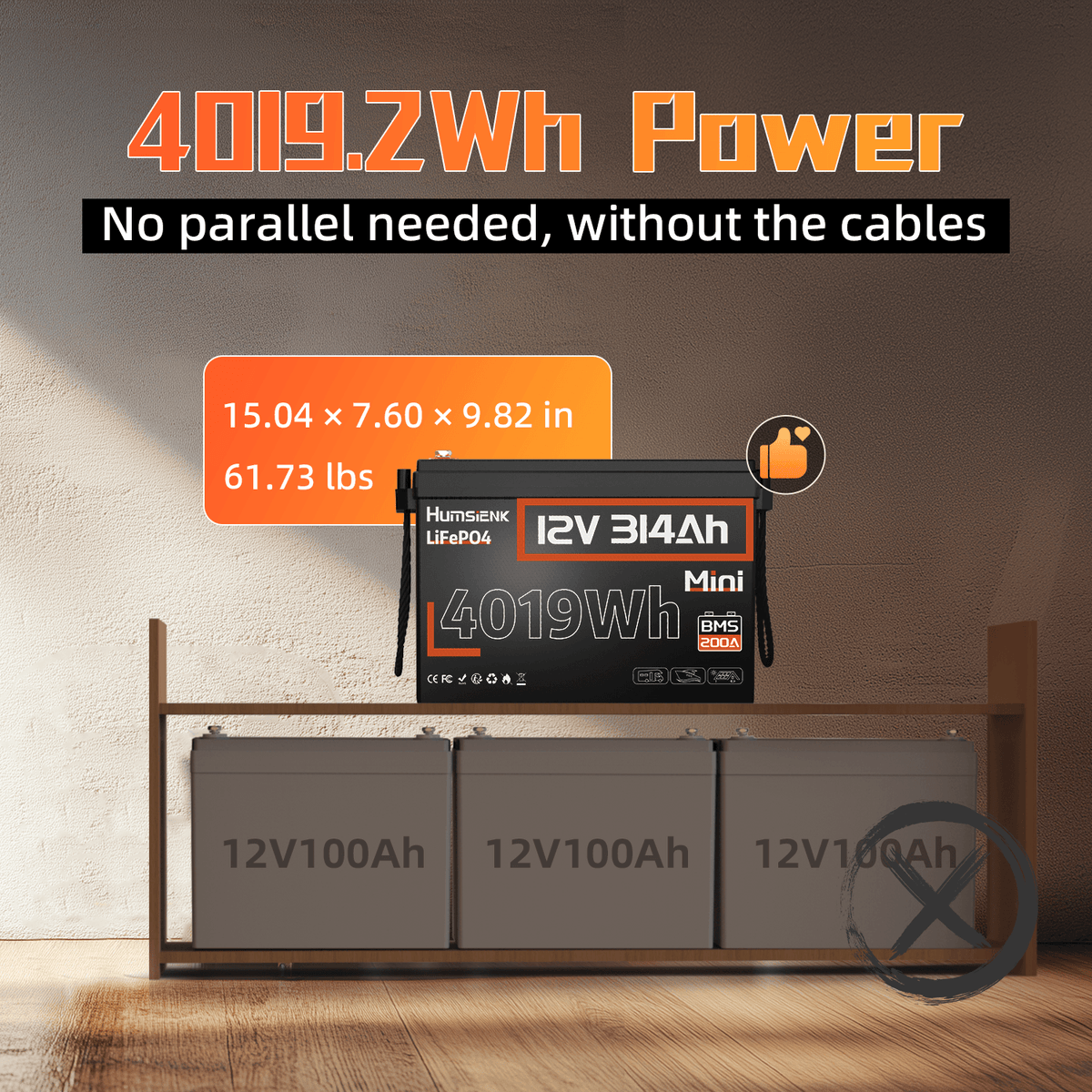

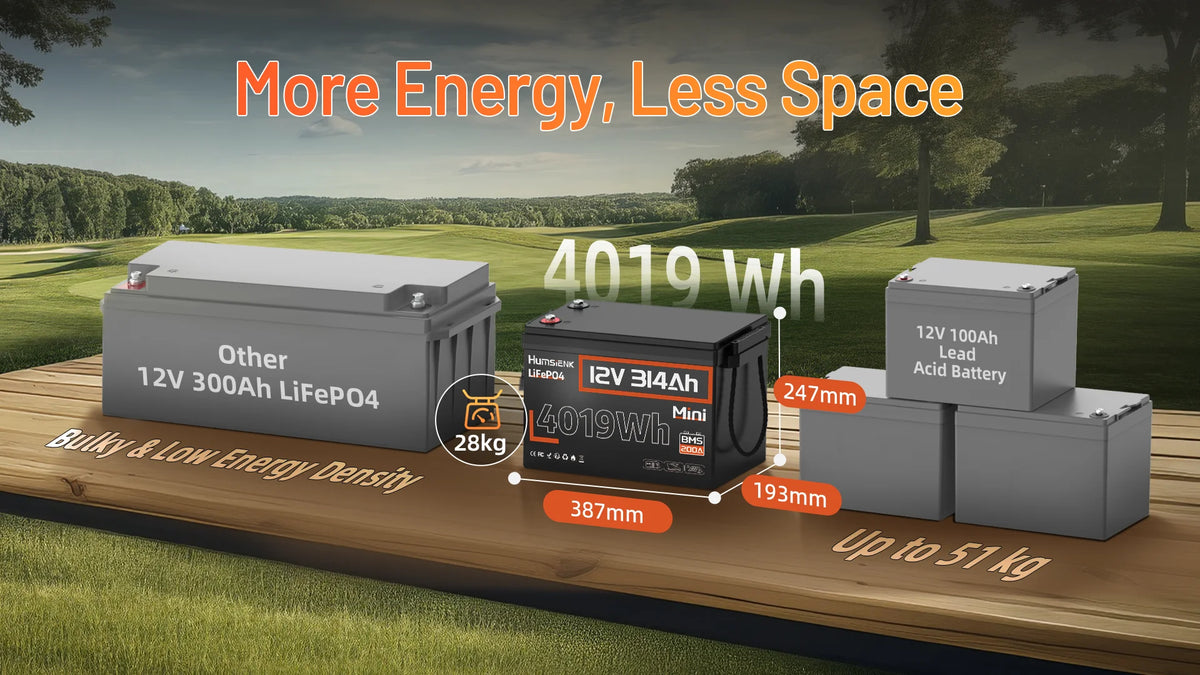

- 1/3 manje i pola težine nego 3 x 12V 100Ah AGM baterije.

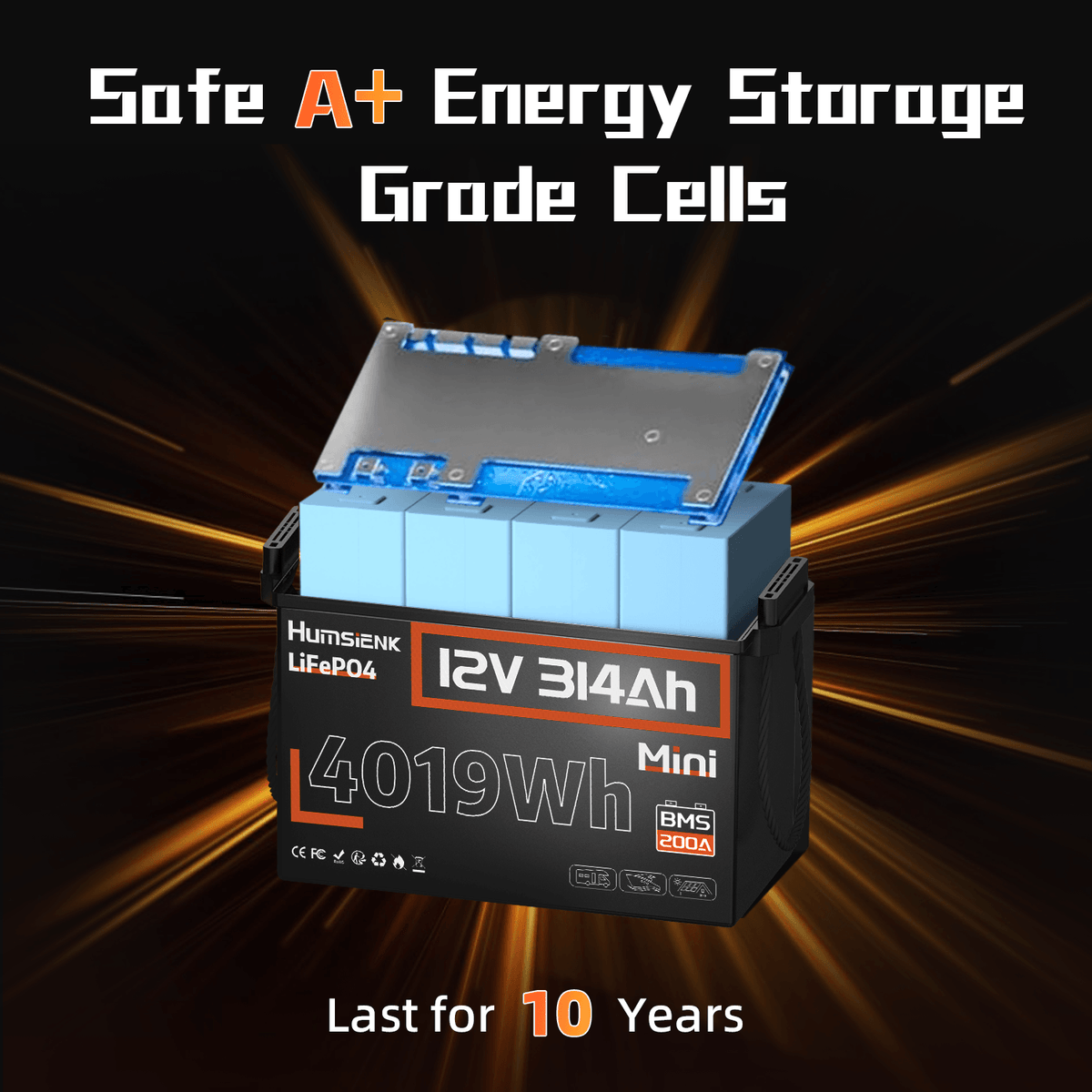

- 4 x 3,2 V 314 Ah EV prizmatične LiFePO4 ćelije klase A+, 6000+ ciklusa pri 80% DoD-a & Vijek trajanja od 10+ godina.
- Osnovna 7+ BMS zaštita, zaštita od prenapona, zaštita od dubokog pražnjenja, zaštita od temperature baterije (visoka/niska temperatura), zaštita od podnapona/preopterećenja, zaštita od struje punjenja.

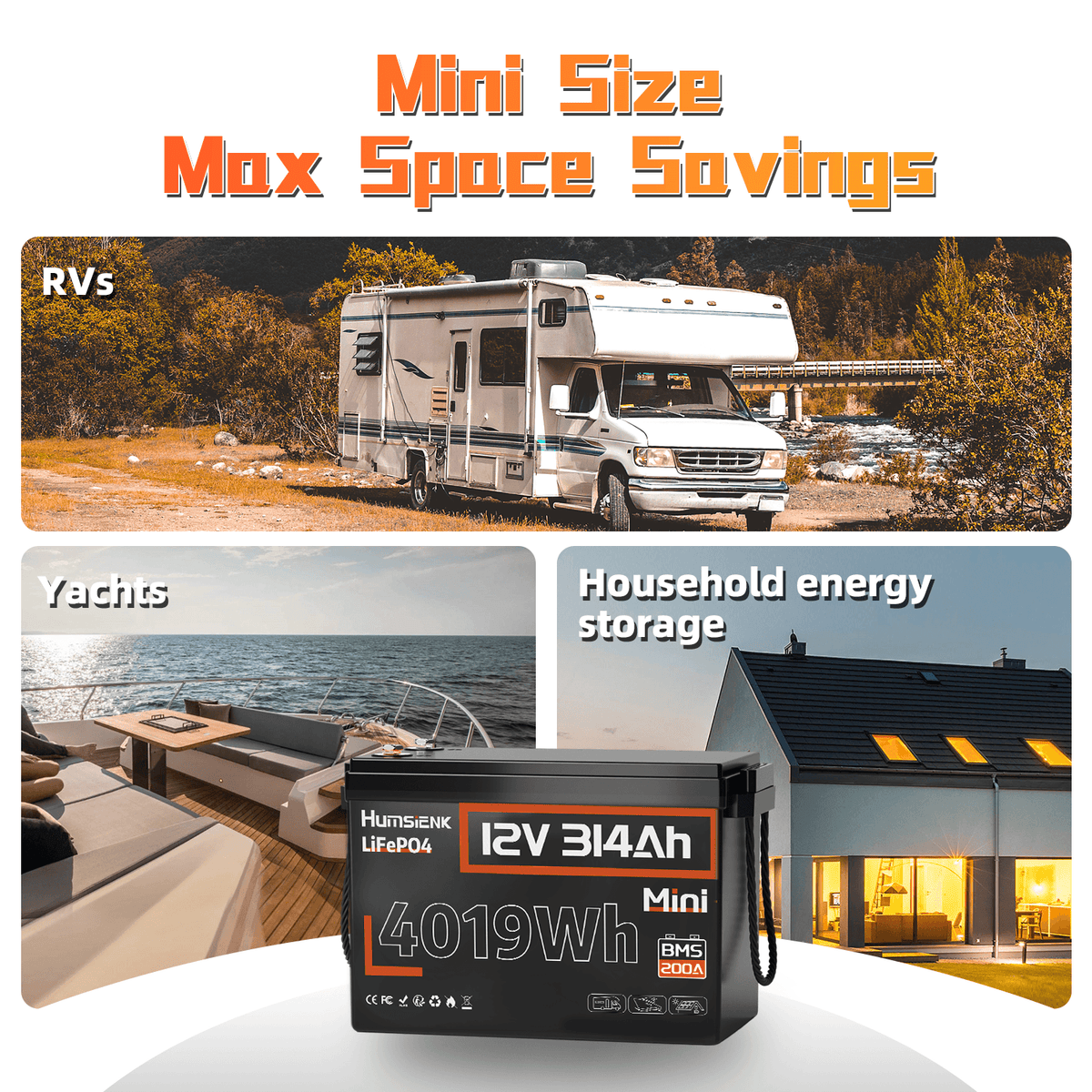

- Pogodno za kontinuirano pražnjenje visokom strujom (maks. 100A/200A), Idealno napajanje za srednje i velike kamp-kućice, karavane, solarne sustave i ribarske brodove, jahte itd.
- Maks. 4P4S proširenje, do 64.307 kWh energije, maksimalna izlazna snaga 20,48 W/40,96 kW.

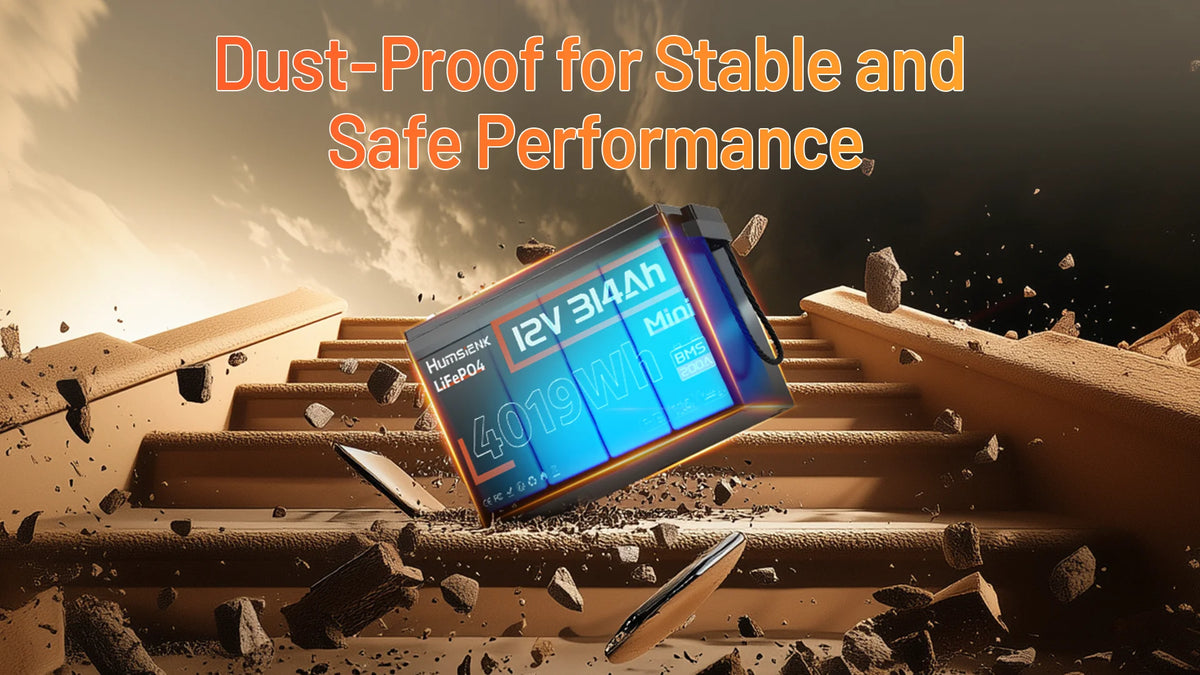

- IP65 ocjena vodootpornosti i otpornosti na prašinu.
- 5-godišnje jamstvo, Certificirano prema IEC62619, CE-EMC, CE-RoHS, CE-Baterija i FCC-SDoC.
Special Add-Ons
Humsienk PULSAR 12V 1000W čisti sinusni inverter
【🔥Blic rasprodaja】Humsienk ORIGIN 12V 640Ah LiFePO4 baterija (Bluetooth i 250A BMS) – ECE R10 certificirana
Shipped from Poland or Germany, nearest warehouse. 2–5 business day delivery, varies by country. See shipping policy.
Product item Warranty period
LiFePO4 Batteries (≤50Ah) — 3 Years
LiFePO4 Batteries (>50Ah) — 5 Years
Refurbished Batteries — 3 Years
Battery Chargers — 3 Years
Other Battery Accessories — 1 Years
Certified with CE, CE EMC, E-Mark, FCC, RoHS and UN38.3. Non-toxic LiFePO4 chemistry, recyclable construction,safe for renewable energy storage applications.
Enjoy hassle-free 30-day returns and our price protection guarantee. If you find a lower price, contact our support team for a refund. See policy for details.
-
Free Local Shipping
-
VAT & Duty Free
-
24/7 Expert Support
-
Protection Upgrade
Battery Performance
200A
Continuous Discharge
4019Wh
Energy Capacity
2560W
Output Power
Specifications
Nominal Voltage
12.8V
Nominal Capacity
314Ah
Energy
4019Wh
Terminal
M8
Cycle Life
6000@DOD80%
Months Self Discharge
≤3%/Month
Efficiency Of Charge
100%@0.2C
Efficiency Of Discharge
96~99%@0.5C
Charge Voltage
14.4V±0.2V
Charge Mode
CC/CV
Charge Recommended Current
62.8A
Max. Continuous Charge Current
200A
Discharge Recommended Current
157A
Max. Continuous Discharge Current
200A
Discharge Cut-off Voltage
10V
Charge Temperature
32°F~131°F/0°C~55°C
Discharge Temperature
-4°F~140°F/-20°C~60°C
Storage Temperature
32°F~113°F/0°C~45°C
Ingress Protection Rating
IP65
Plastic Case
ABS
Size
382.7×193.3×249.5 (mm)/15.07×7.61×9.82 (inch)
Weight
26.5kg±3%/58.42lb±3%

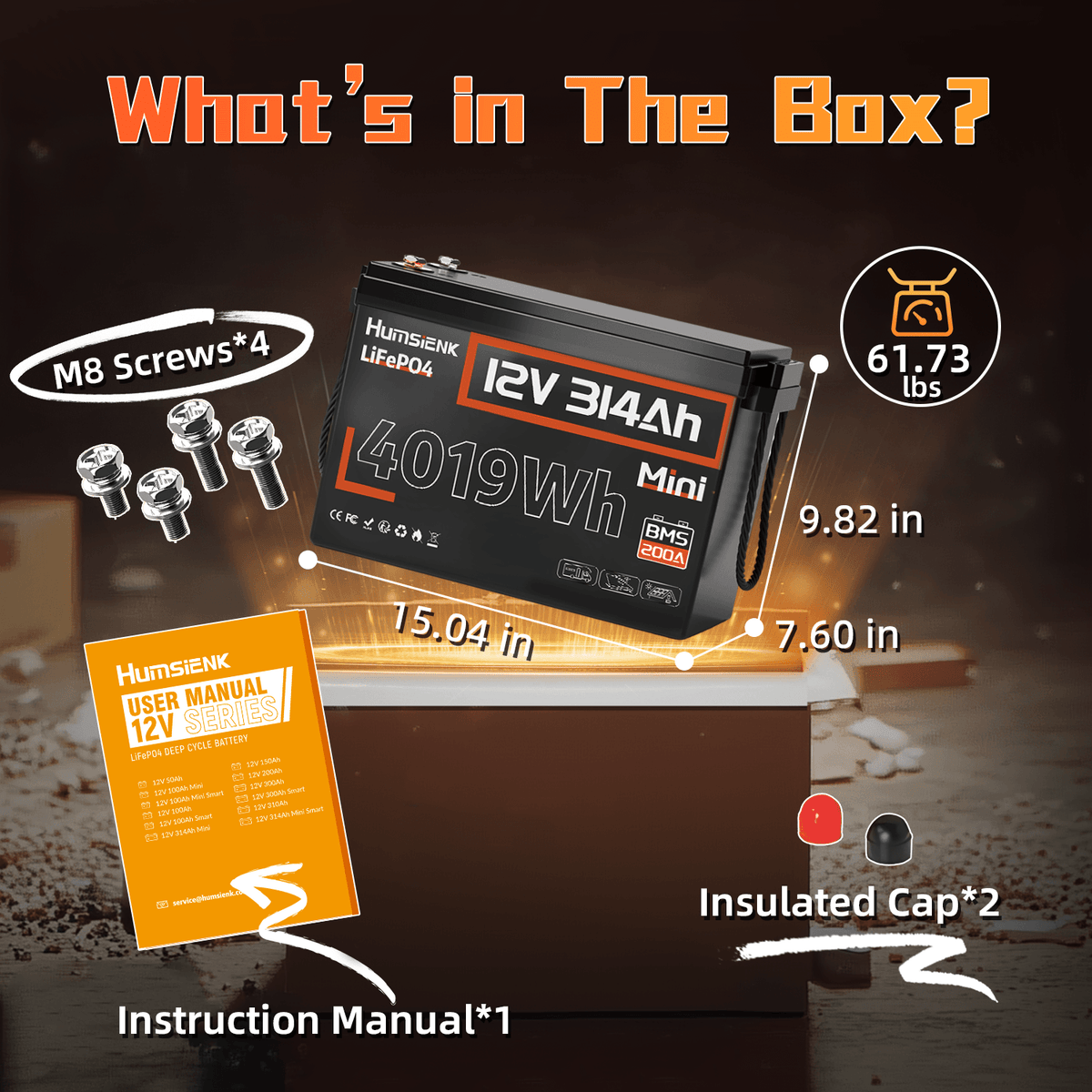

What's in the Box
Battery
×1
Screw
×4
User Manual
×1
Plastic Insulation Cap
×2
Product Documents
HS12V 314Ah Manual
User Manual & Specification Sheet · English PDF
- IEC 62619
- UN 38.3
- RoHS
- CE
- FCC
FAQ
All Humsienk LiFePO4 lithium batteries have built-in powerful BMS, which has multiple protections such as overvoltage, overcurrent, extreme temperature, short circuit, etc.

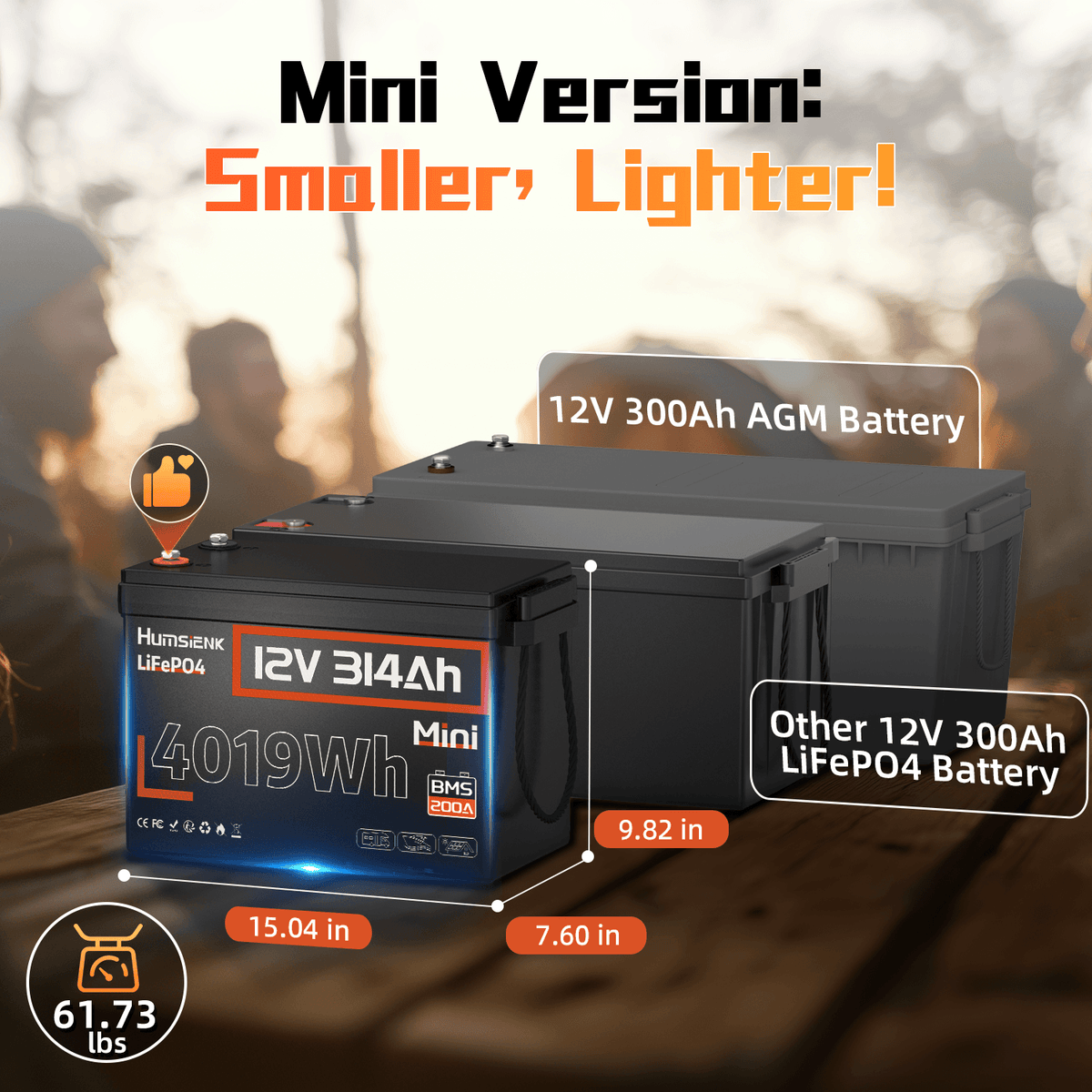

The dimensions are 382 x 193 x 249.5 mm, which is smaller than LiFePO4 batteries with a capacity of over 300Ah on the market. The weight is 28 kg.
Our 314Ah Mini LiFePO4 lithium battery supports horizontal and sideways placement, meaning it can be installed if the height under the seat allows 193 mm.

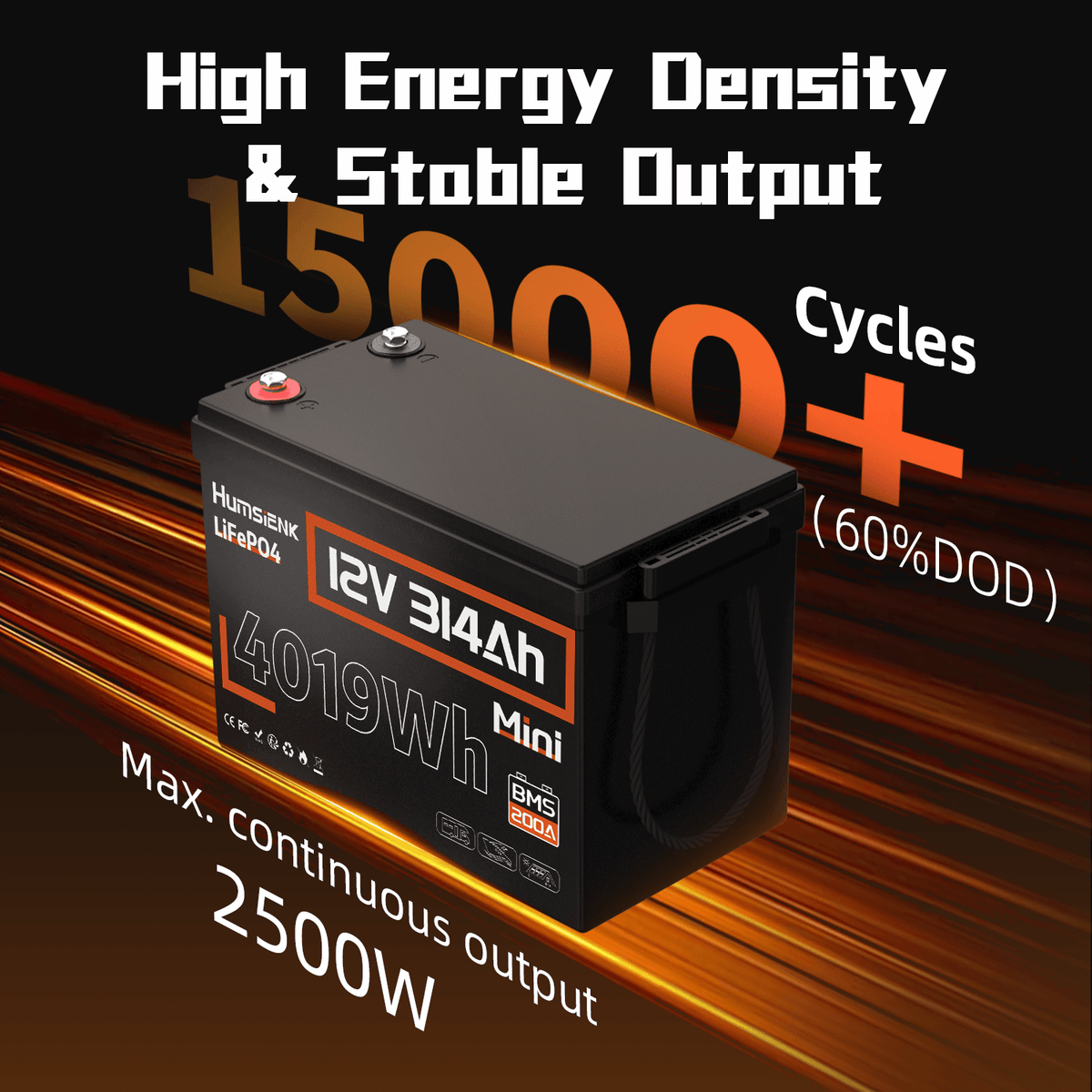

The battery features four 3.2V 314Ah EV-grade LiFePO4 cells, providing 4,019Wh of energy. Its built-in 200A BMS supports up to 2,560W of continuous output, making it suitable for RVs, marine use, solar systems, and off-grid power applications.
For Regular Version: Humsienk recommends you purchase the 500A battery monitor.
For Bluetooth Version: Built-in Bluetooth 5.0, can be monitored via the HumSienk Smart BMS App. Bluetooth Guide.
Approximate 8 hours.
Assumed close to 100% efficiency, 500 Watts divided by 12.8 Volts is about 39A. If you run the battery dead 314Ah divided by 39A is about 8 hours.
No, Humsienk 12V 314Ah Mini LiFePO4 lithium battery is a deep-cycle battery designed for energy storage and not for the high, short-burst current required for starting an engine.
There are three general charging methods: AC-DC LiFePO4 charger, solar panel charging and DC generator charging.
Charging Voltage: 14.4V-14.6V
Recommended Charge Current: 60A (0.2C)
All Humsienk LiFePO4 lithium batteries are charged within a range of 0°C to 55°C and feature low temperature cut-off protection. When the ambient temperature is below 0°C, the BMS will cut off to protect the battery. Charging in freezing temperatures will damage the battery cells.
No, this is not recommended. All Humisenk LiFePO4 lithium batteries are LiFePO4 deep cycle batteries. Using a charger not specifically designed for LiFePO4 batteries may result in overcharging and damage to the LiFePO4 battery cells.
Humsienk 12V 314Ah Mini LiFePO4 lithium battery supports up to 4 series and 4 parallel connections, which means that 16 12V 314Ah Mini LiFePO4 lithium batteries can form a 48V 1256Ah battery system.
⚠️ Critical Connection Requirements
- Same brand: The batteries need to be of the same brand, as the cells and BMS of other brands of batteries may be different from those used by Humsienk.
- Same Battery Model: Using the exact same battery model with the same voltage (V), capacity (Ah), and BMS rating (A).
- Purchased in the last three months: Ensuring they are from the same manufacturing batch for balanced performance.
- Tips: Before connecting batteries in series or parallel, each battery needs to be fully charged.
Sure! Switching to LiFePO4 lithium batteries requires some planning to ensure it works seamlessly with your existing lead-acid battery system:
- Voltage compatibility
- Capacity and runtime matching
- Dimensions and connection terminals match
And you need to consider whether the charging device should match the LiFePO4 battery.
All Humsienk LiFePO4 lithium batteries are charged within a range of 0°C to 55°C and feature low temperature cut-off protection. When the ambient temperature is below 0°C, the BMS will cut off to protect the battery. Charging in freezing temperatures will damage the battery cells.
