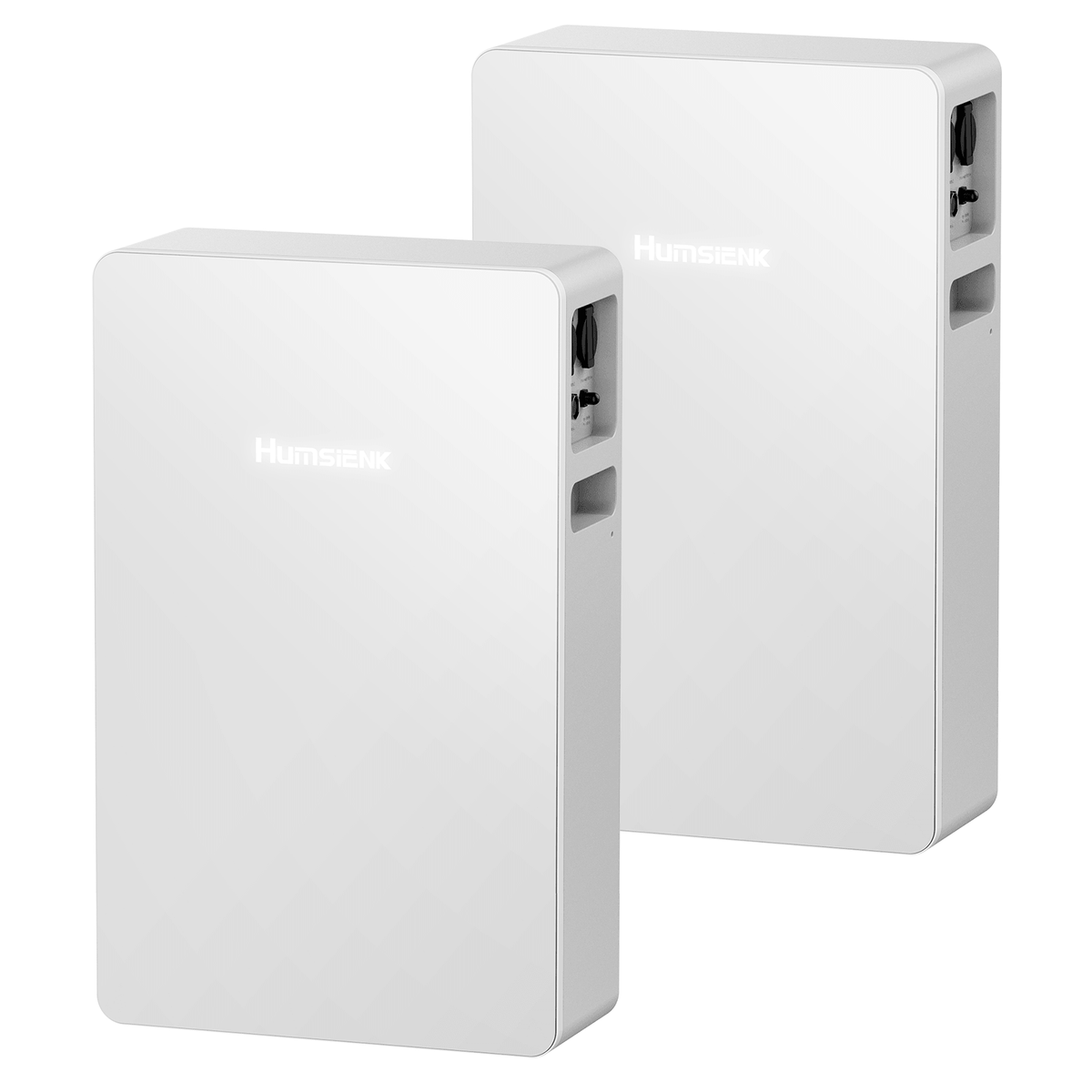

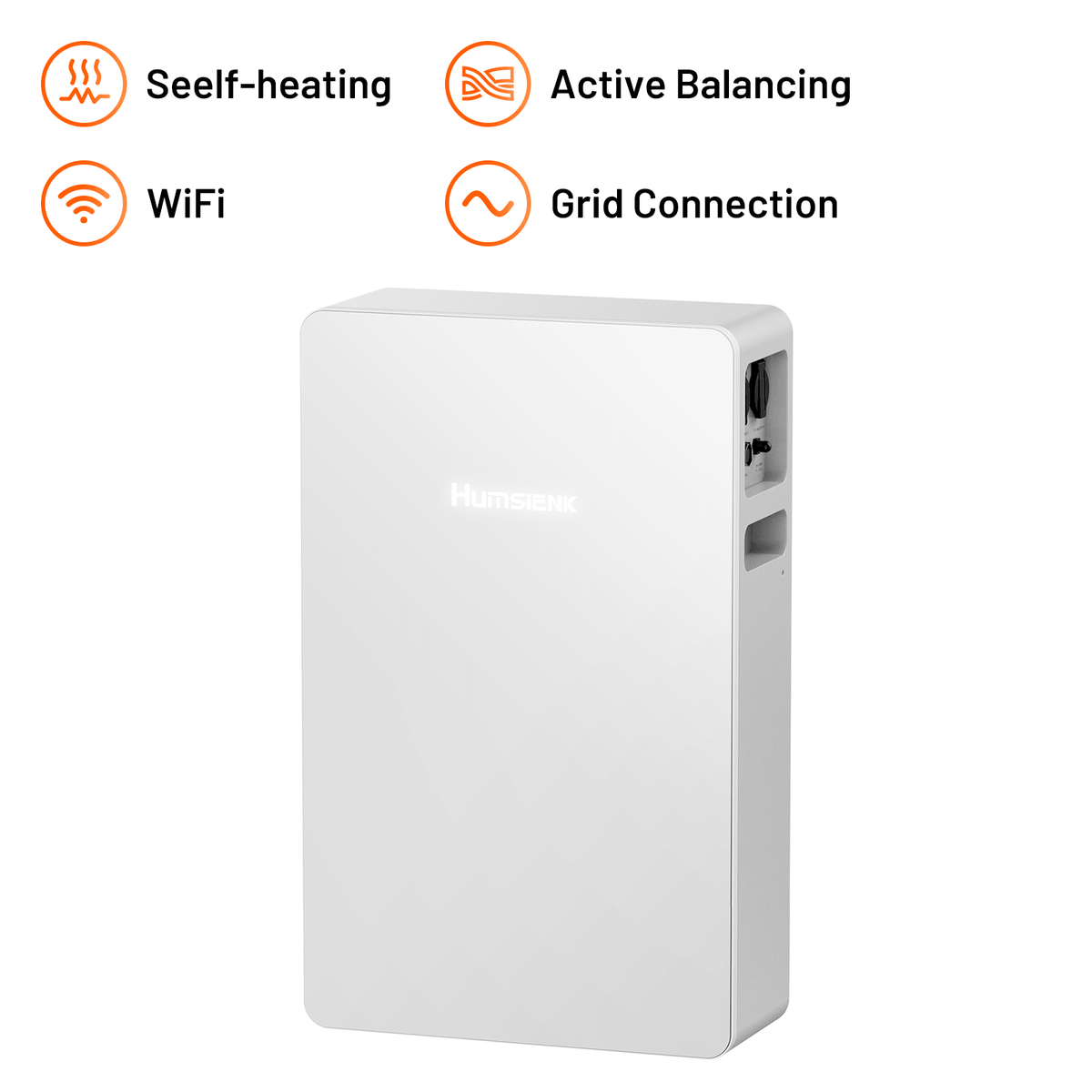

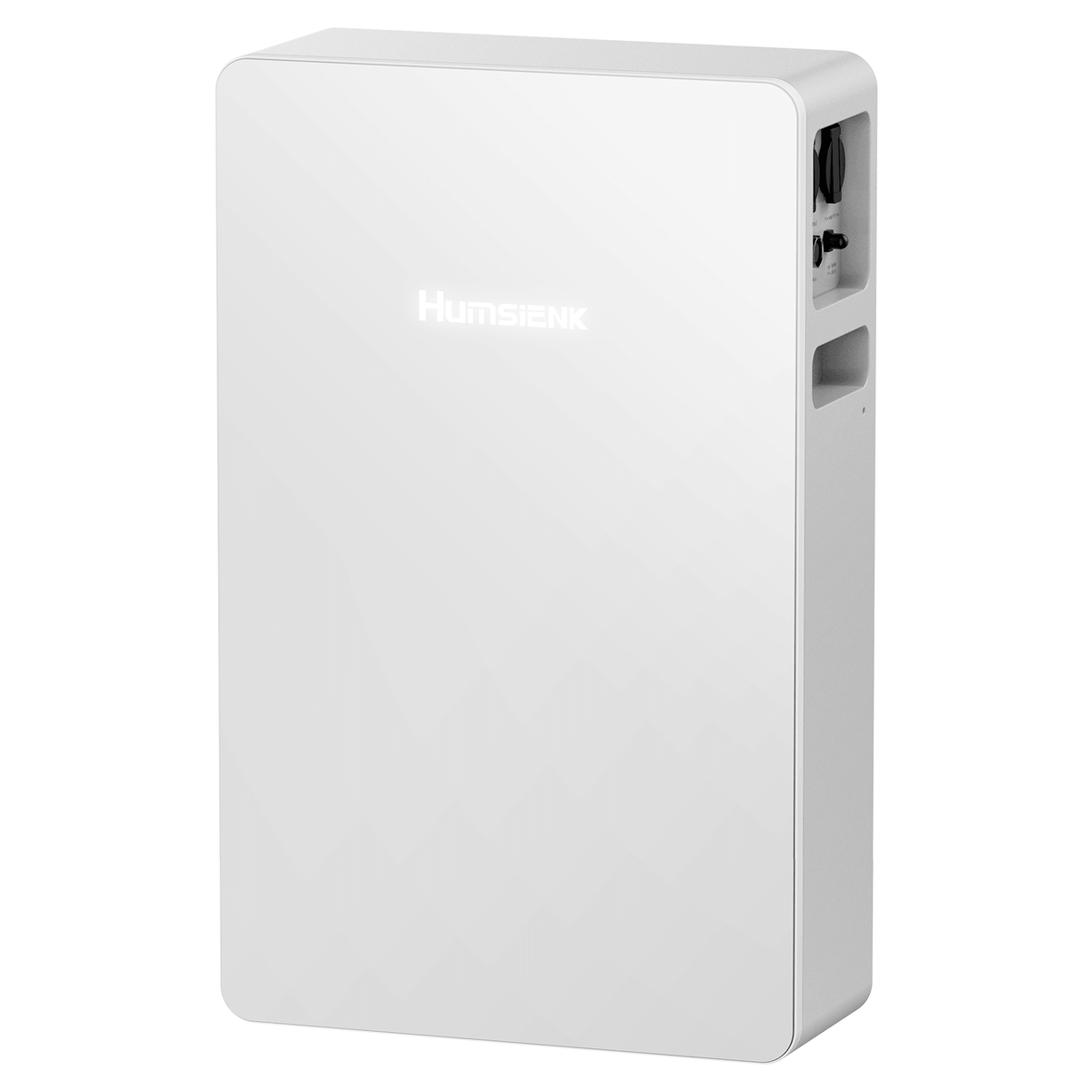

Humsienk NOVA All-in-One 2500W balkonzonnepanelensysteem (7680Wh LiFePO4)
€1.190,99€1.999,99Redden €809,00 (40%)
Tax & shipping included
👍 Product Information

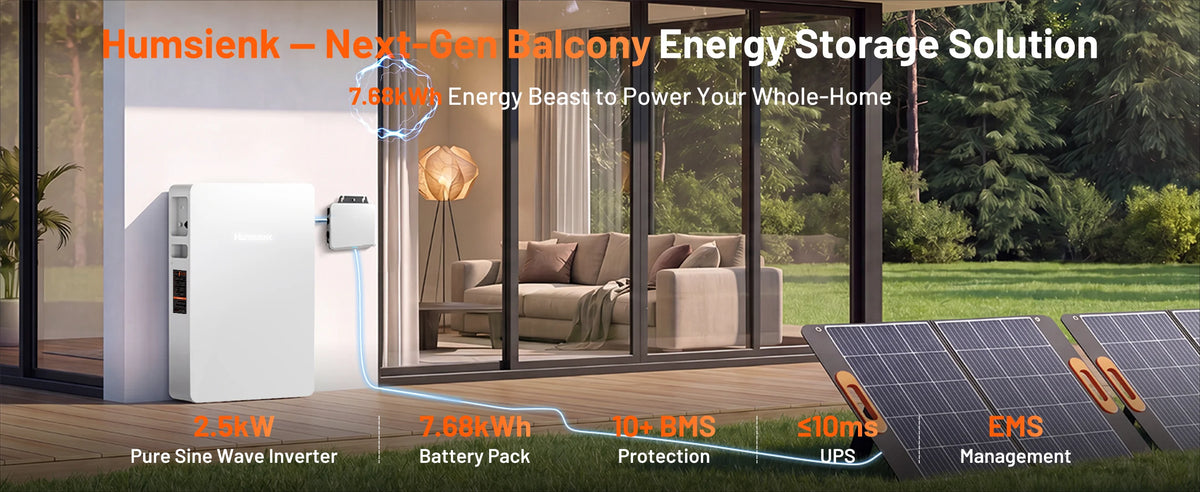

- Aansluitbare thuisbatterijopslagEen op zichzelf staande 7,68 kWh LiFePO4-opslagunit voor appartementen, huizen en zonne-energiesystemen op balkons.
- Sla zonne-energie op voor later gebruik.Overtollige zonne-energie overdag opslaan en 's nachts of tijdens piekuren gebruiken.
- 2500W zuivere sinusgolfuitgangBiedt stabiele stroom voor dagelijkse benodigdheden zoals routers, laptops, verlichting, tv's en kleine huishoudelijke apparaten.
- <10ms UPS-back-upHelpt ervoor te zorgen dat belangrijke apparaten blijven werken wanneer het elektriciteitsnet plotseling uitvalt of er stroomstoringen optreden.

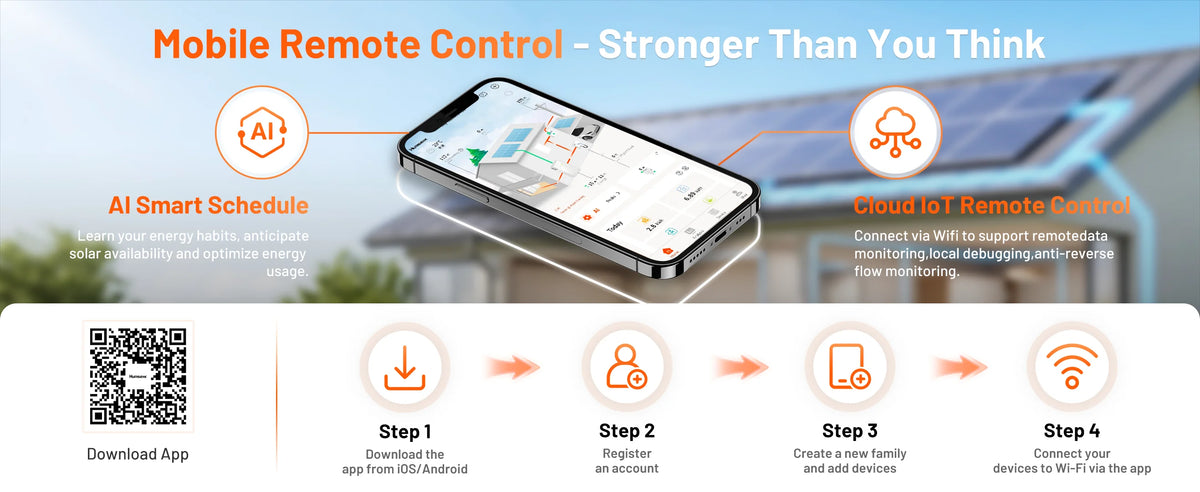

- Slimme app voor energiebeheer: Monitor SOC, laden, ontladen, output en energiestroom via APP en EMS-beheer.
- IP65-bescherming voor buitengebruikOntworpen voor energieopslag op balkons, terrassen, in tuinen en semi-buitenruimtes rondom woningen.
- Zelfverwarming bij koud weerDe ingebouwde zelfverwarming zorgt voor een veiligere werking van de batterij bij lage temperaturen.

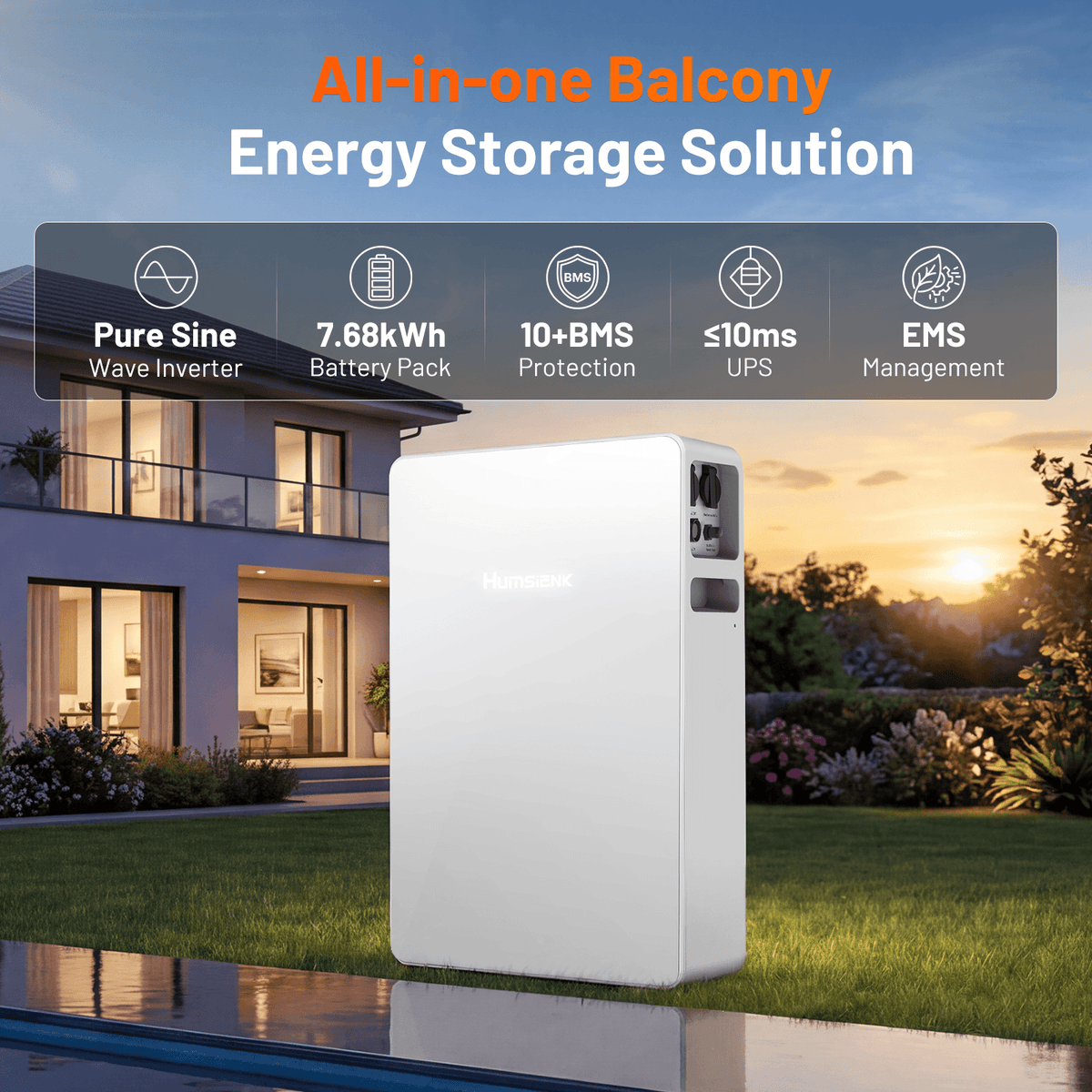

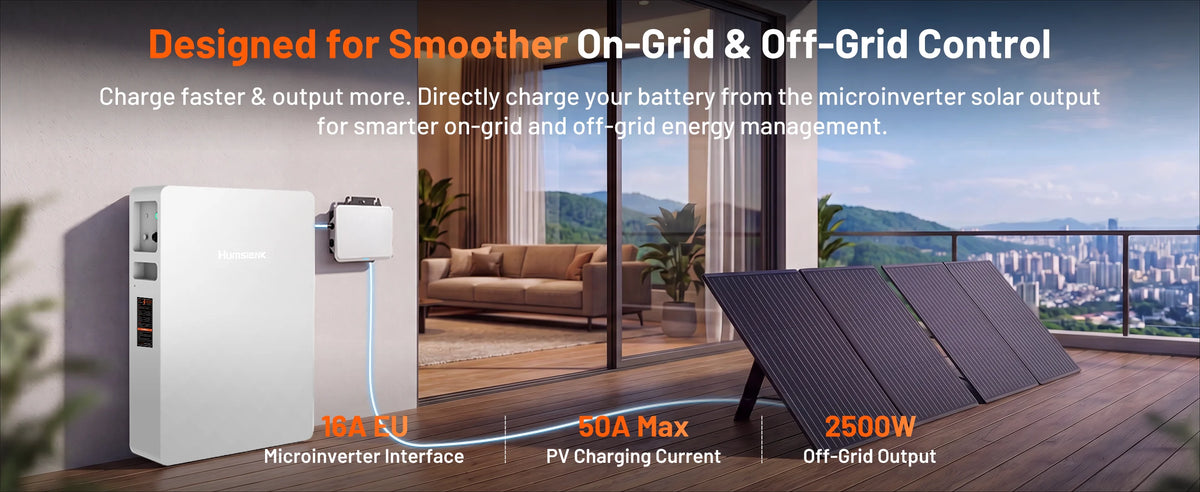

- Alles-in-één, minder bedradingDe batterij, omvormer, BMS, UPS, EMS en micro-omvormerinterface zijn geïntegreerd in één compacte unit.

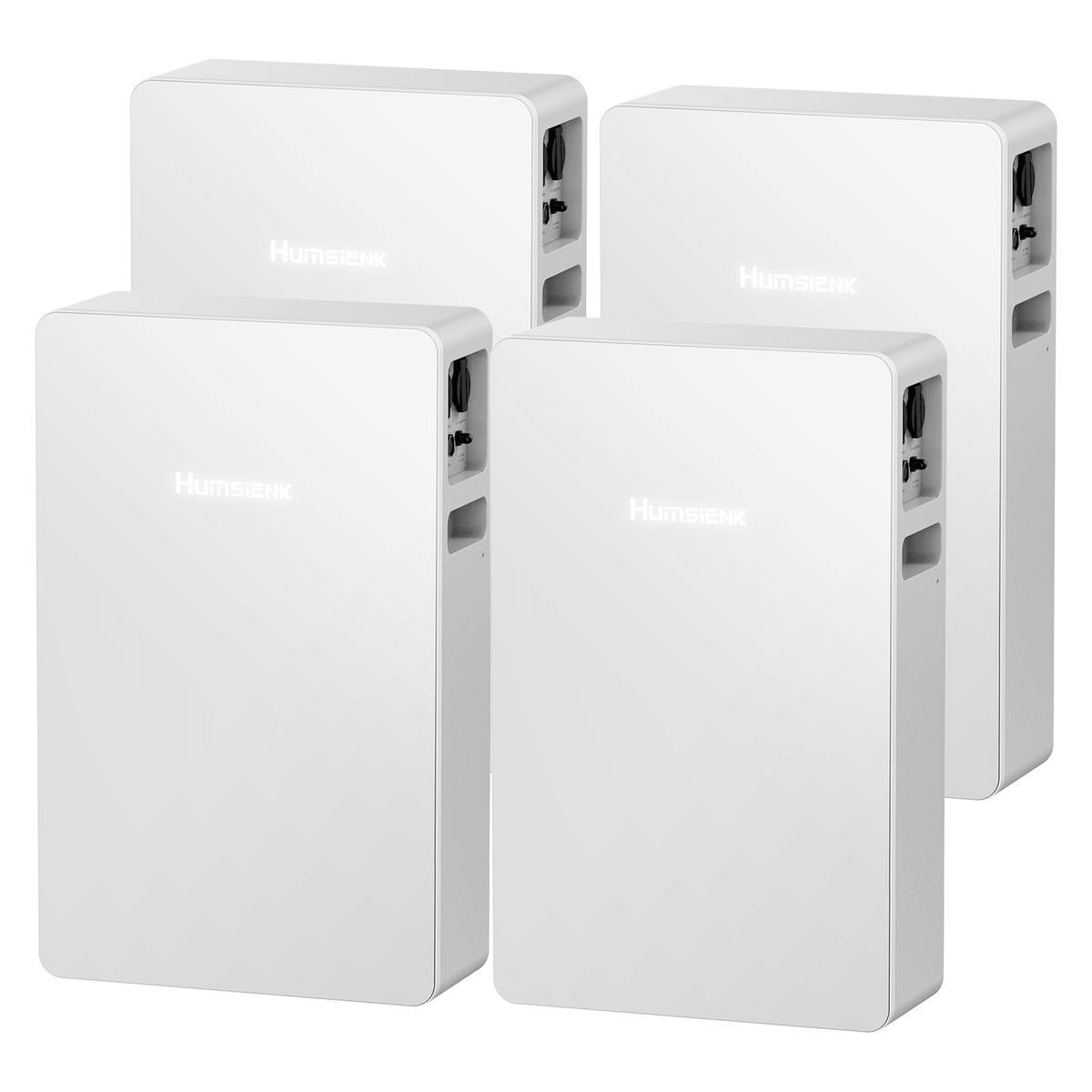

Pak:
€1.190,99€1.999,99Redden €809,00 (40%)
Shipped from Poland or Germany, nearest warehouse. 2–5 business day delivery, varies by country. See shipping policy.
Product item Warranty period
LiFePO4 Batteries (≤50Ah) — 3 Years
LiFePO4 Batteries (>50Ah) — 5 Years
Refurbished Batteries — 3 Years
Battery Chargers — 3 Years
Other Battery Accessories — 1 Years
Certified with CE, CE EMC, E-Mark, FCC, RoHS and UN38.3. Non-toxic LiFePO4 chemistry, recyclable construction,safe for renewable energy storage applications.
Enjoy hassle-free 30-day returns and our price protection guarantee. If you find a lower price, contact our support team for a refund. See policy for details.
-
Free Local Shipping
-
VAT & Duty Free
-
24/7 Expert Support
-
Protection Upgrade
Payment Method

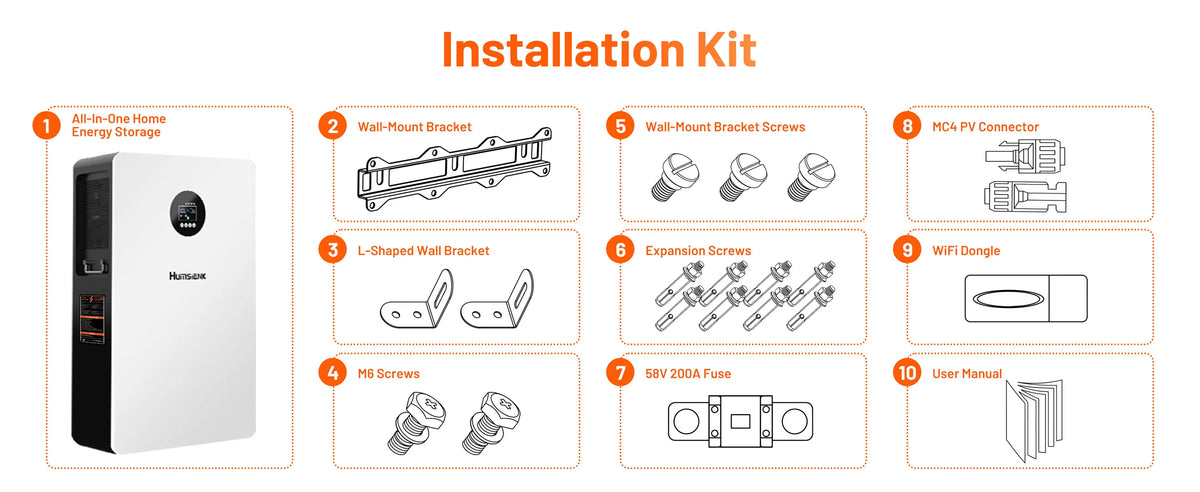

What's in the Box
All-In-One Home Energy Storage
×1
M6 Screw
×2
User Manual
×1
Wall-Mount Bracket
×1
L-Shaped Wall Bracket
×2
Wall-Mount Bracket Screws
×3
Expansion Screws
×8
USB Wi-Fi Dongle
×1
Product Documents
2500W All-in-One Balcony Solar System (7680Wh LiFePO4)
User Manual & Specification Sheet · English PDF
- IEC 62619
- UN 38.3
- RoHS
- CE
- FCC
Specification
| Model | HSBPSS2K5W7K68WHEU |

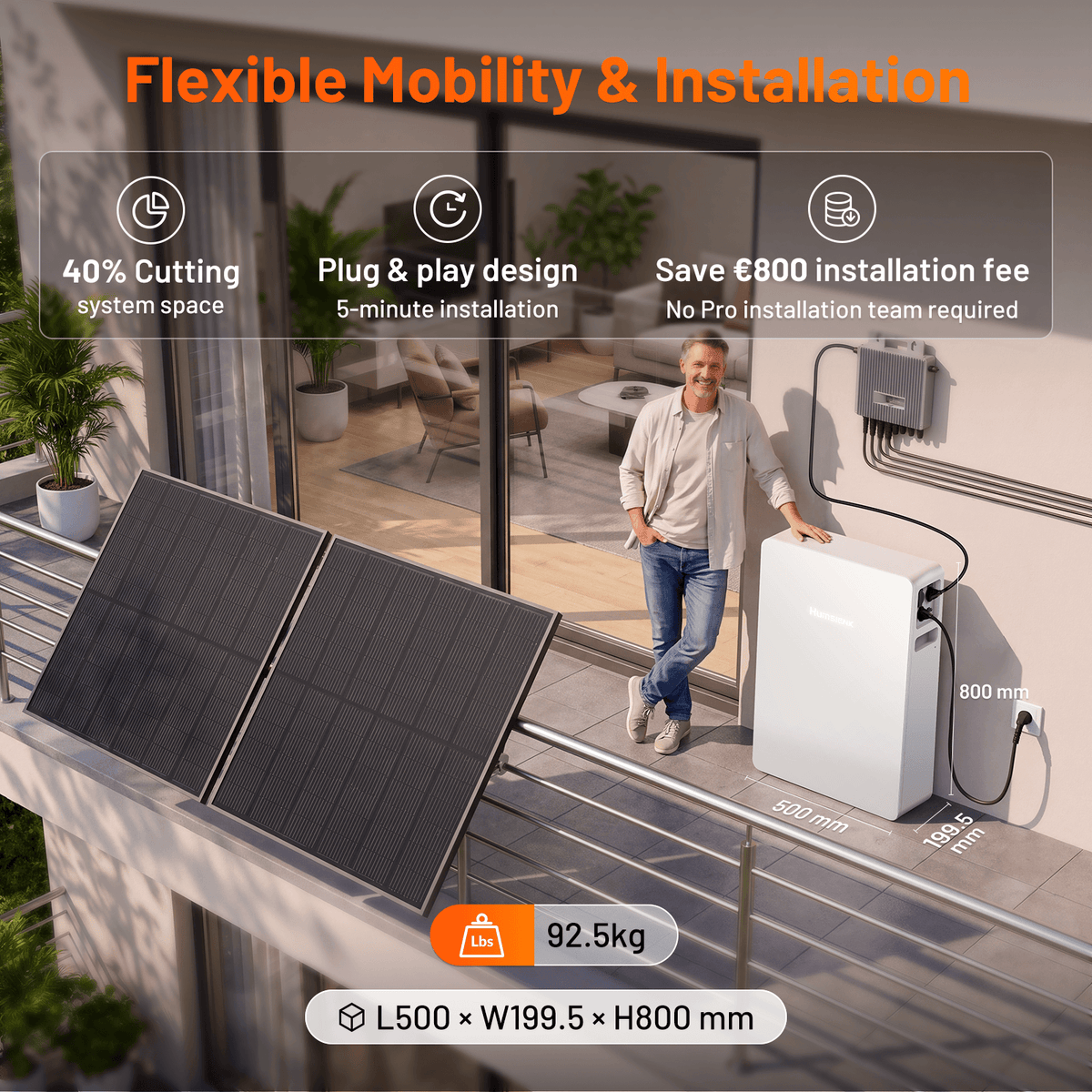

| Dimensions (L × W × H) | 19.69 × 7.85 × 31.5 inch / 500 × 199.5 × 800 mm |
| Weight | 203.93 lb ±5% / 92.5 kg ±5% |
| Display | Touch Screen |
| Ingress Protection Rating | IP65 |
| Operating Temperature | 14°F to 131°F / -10°C to 55°C |
| Operating Humidity | 0–98% |
| Energy Saving Mode | <13W (sleep, no output); <30W (output no-load) |
| Total Energy | 7.68kWh |
| Rated Capacity | 150Ah |
| Rated Voltage | 51.2V |
| Standard Discharge Capacity | ≥150Ah |
| Battery Internal Resistance | ≤13.9mΩ |
| Charge Cut-Off Voltage | 56–58.4V |
| Input Current | Max. 100A |
| Output Current | Max. 100A |
| Discharge Current Protection | 100A / 300s |
| Charging Method | Constant Current / Constant Voltage (CC/CV) Charging |
| State of Charge (SOC) Range | 40%–60% |

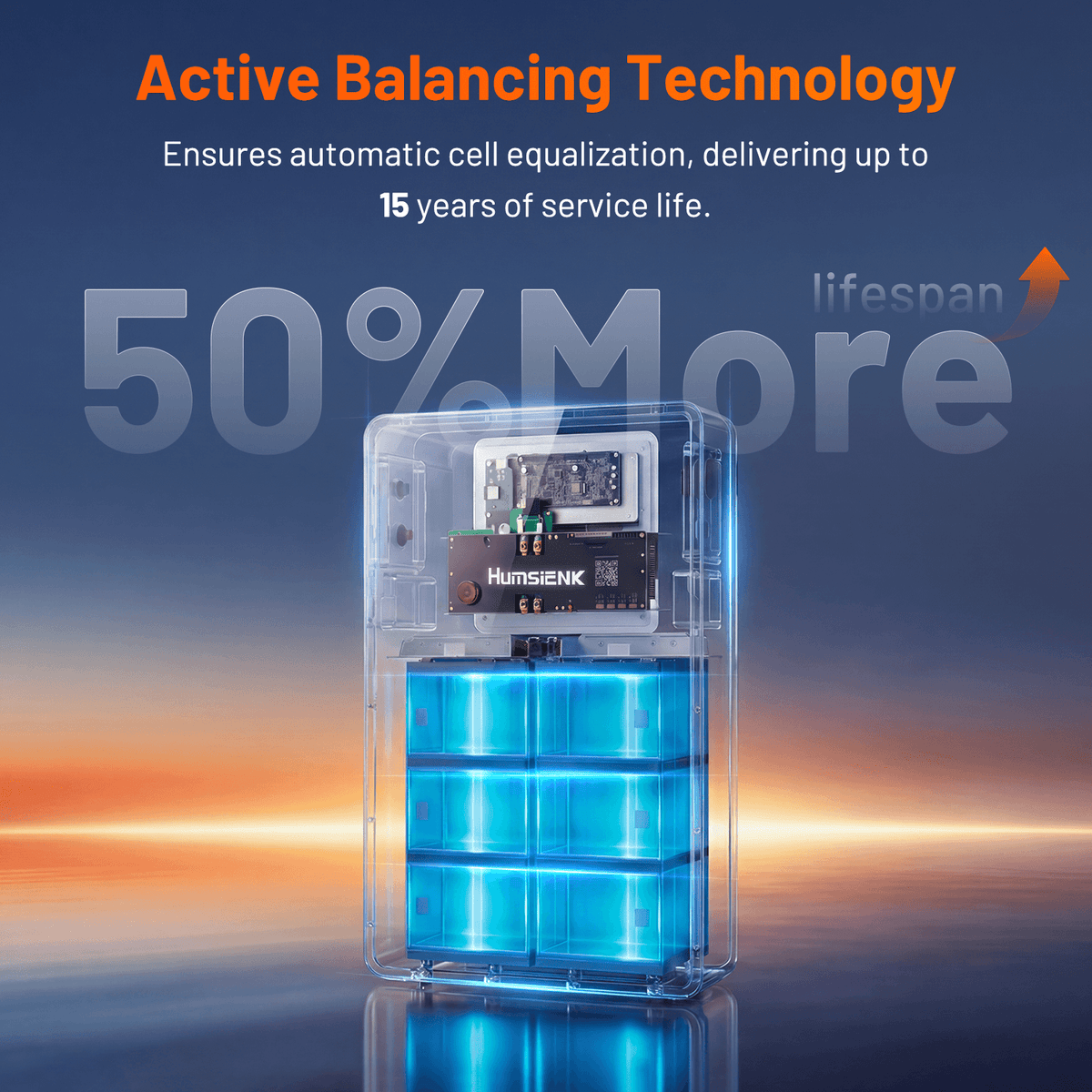

| Balancing Method | Active Balancing |
| Standby Self-Consumption | ≤300μA |
| Battery Cycle Life | ≥8000 cycles @ 77°F / 25°C, 70% EOL |
| Cell Overcharge Voltage | 3.6V |
| Cell Overdischarge Voltage | 2.6V |
| Cell Overcharge Recovery Voltage | 3.55V |
| Cell Overdischarge Recovery Voltage | 2.65V |
| Charge High-Temperature Protection | 158°F / 70°C |
| Charge High-Temperature Recovery | 140°F / 60°C |
| Charge Low-Temperature Protection | -4°F / -20°C |
| Charge Low-Temperature Recovery | 14°F / -10°C |
| Discharge High-Temperature Protection | 158°F / 70°C |
| Discharge High-Temperature Recovery | 140°F / 60°C |
| Discharge Low-Temperature Protection | -31°F / -35°C |
| Discharge Low-Temperature Recovery | -22°F / -30°C |
| Short-Circuit Protection | Recovery via “Remove Load” and “Charge / Discharge Removal” |
| Communication Protocol | PYLON 485 |

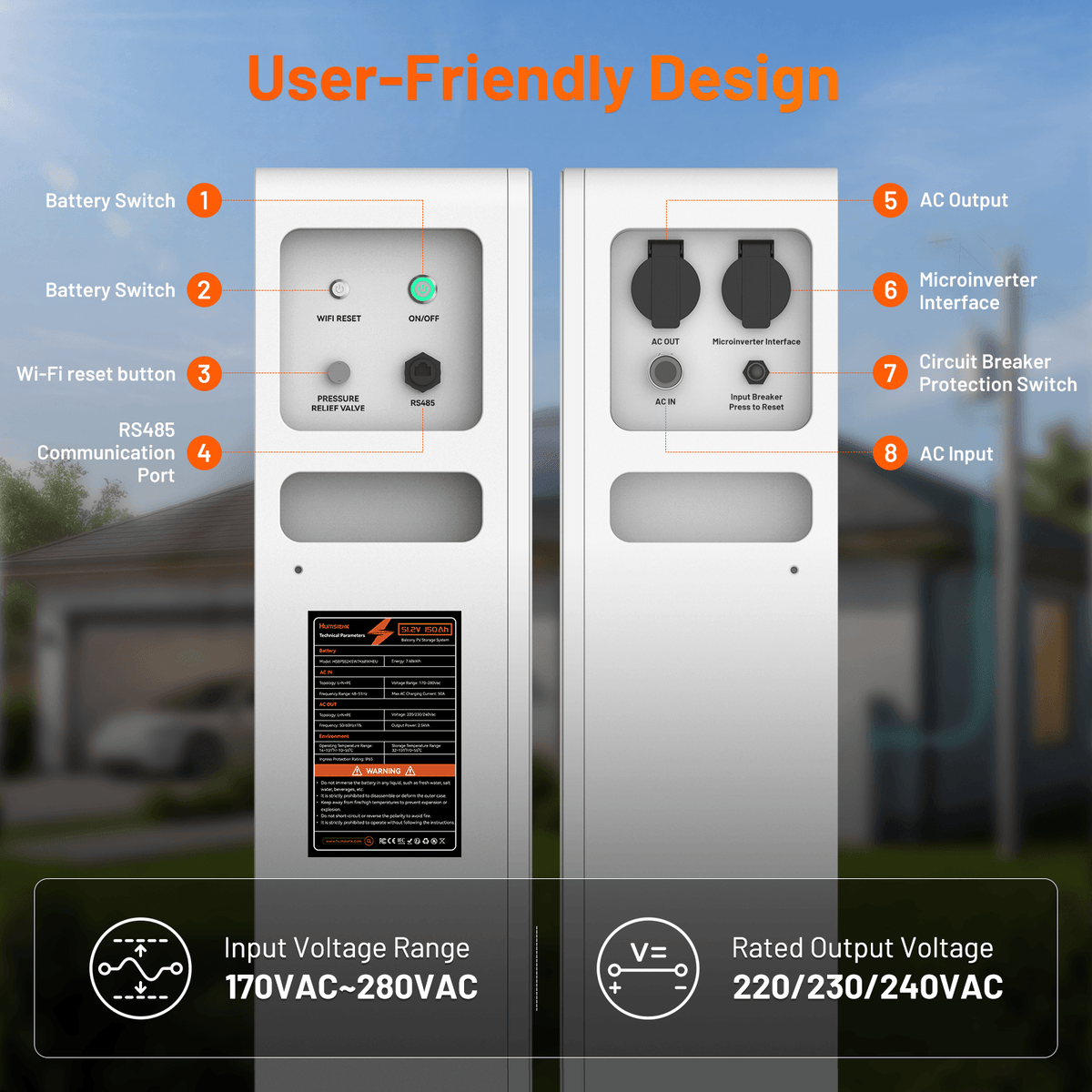

| Voltage Range | 170–280Vac, L+N+PE |
| Input Frequency | 48–51Hz |
| Rated Capacity | 2.5kW |
| Surge Power | 5kVA |
| Output Voltage | 208 / 220 / 230 / 240Vac |
| Input Power Factor | ≥0.98 PFC |
| Output Frequency | 50 / 60Hz ±0.1 |
| Switching Time | <10ms (UPS mode, auto-switch during grid failure) |
| Output Waveform | Pure Sine Wave |
| Overload Capacity (Battery Mode) | 5 min @ 105%–120% rated load 10s @ 120%–150% rated load |
| Battery Discharge Efficiency | 94% @ 48VDC |
| Charge Stop Voltage | 56.8V |
| Discharge Stop Voltage | 44V |
| Max AC Charging Current | 50A |

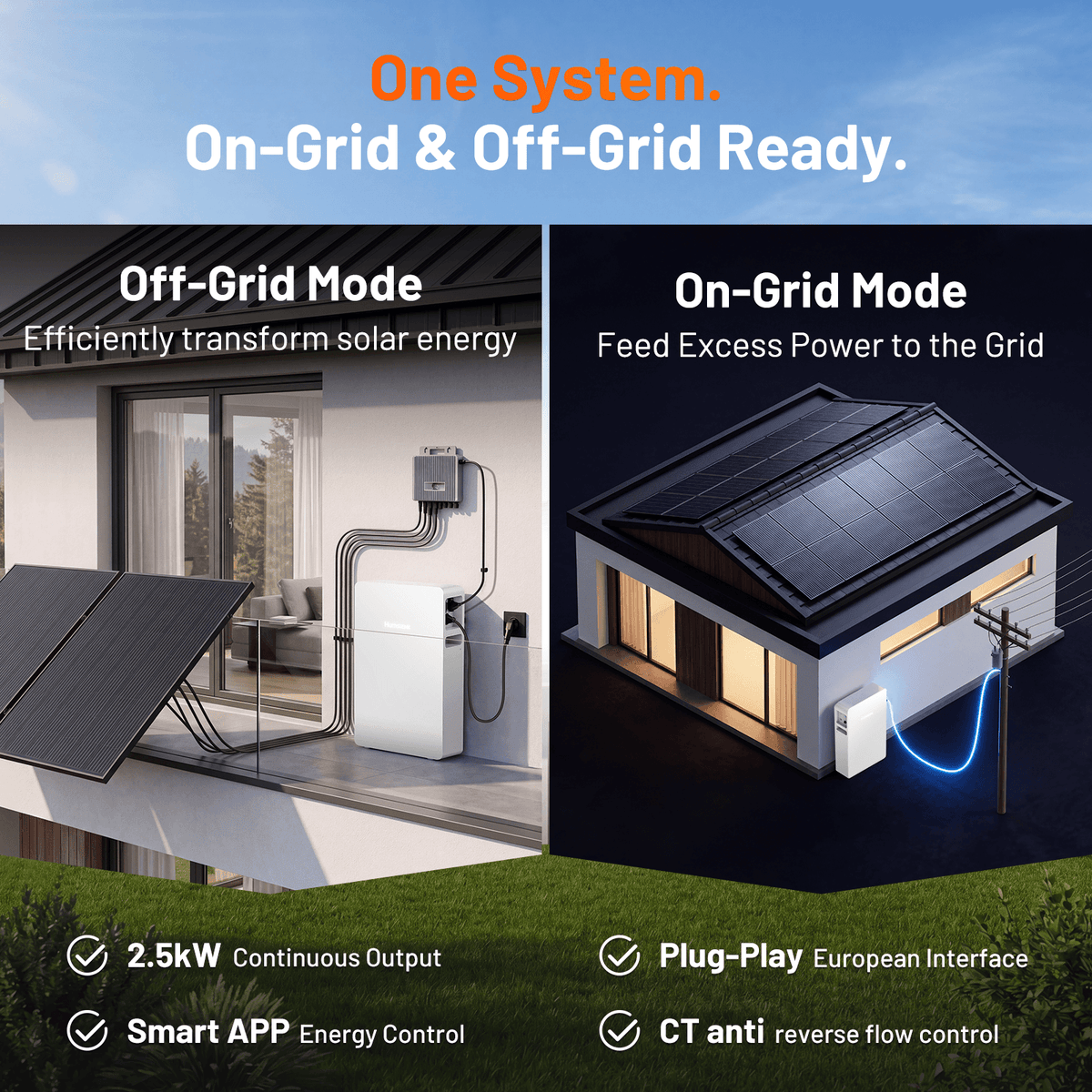

| Grid-Tie Power | 0–2500W |
| APP Function | Grid-tie and power management & control |
| Insulation Withstand Voltage | 42VDC between battery and AC side, leakage current ≤1mA |
| Certifications | UN38.3, CE, EN50549, VDE-AR-N 4105 |
