Humsienk 51,2V 100Ah LiFePO4 Solar Battery, 5.12kWh Wall-Mounted Home Battery Storage
Skat inkluderet.
Forsendelse beregnes ved kassen.
The First Wall-mounted Battery, Version 2 Battery with active cell balancing! Mega 5kWh battery can be placed vertically on the ground or mounted on a wall.
Free Shipping from Poland or Germany,
Order in the next [totalHours] hours %M minutes, Get it between and
Description

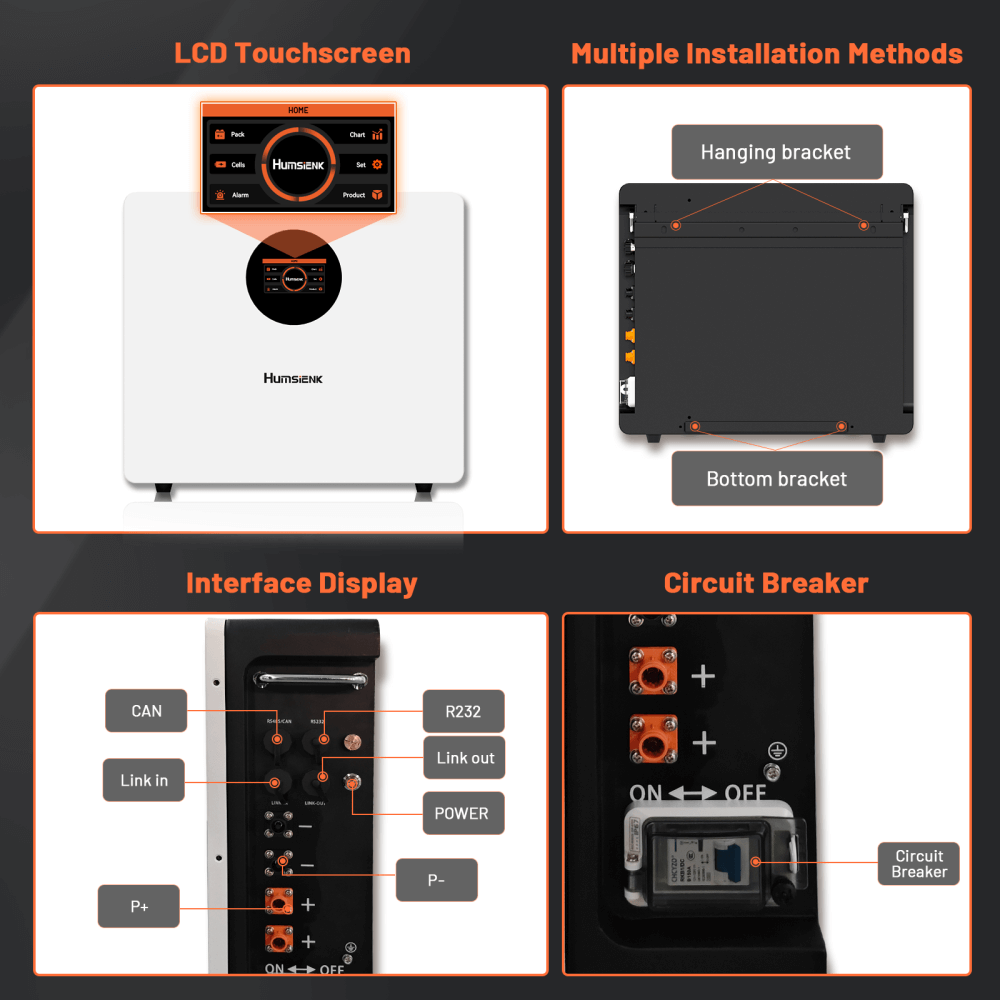

- Mega 5kWh energy, can be placed vertically on the ground or mounted on a wall.
- Cell-Balancing, Version 1 features passive cell balancing; Version 2 features active balancing.
- Plug & Play, supports Standard CAN, RS485, RS232 and Bluetooth communication.

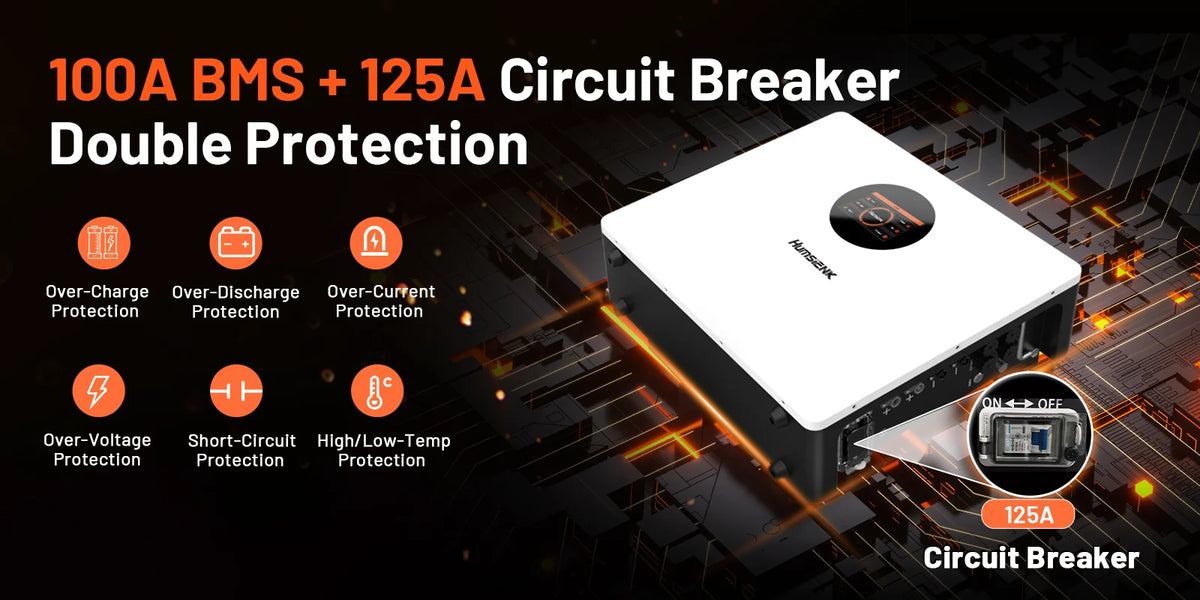

- Double Safety Protection, 100A BMS & 125A circuit breakter, 7x basic protection (overvoltage protection, deep discharge protection, battery temperature (high/low-temperature) protection, undervoltage/overload protection, charging current protection.)

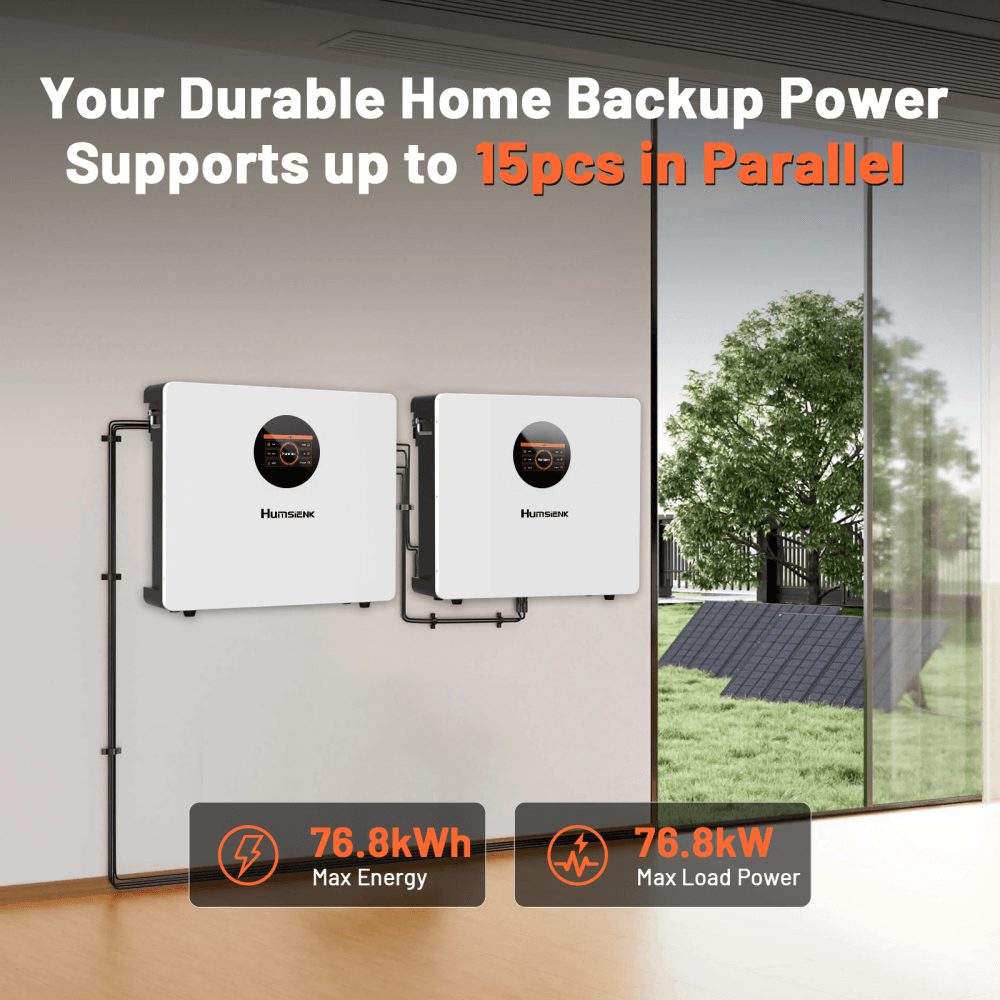

- Max. 15 units parallel expansion, total energy 76.8kWh & total power 76.8kW
- Compatible with most inverter brand on the market, like Victron, Deye, Growatt.
- 5-year warranty, IEC62619, CE-EMC, CE-RoHS, CE-Battery and FCC-SDoC certified.
Specification
Product Data
| SKU | HS48V100AH100WALLBTNEW |
| Category | LiFePO4 Deep Cycle Battery |

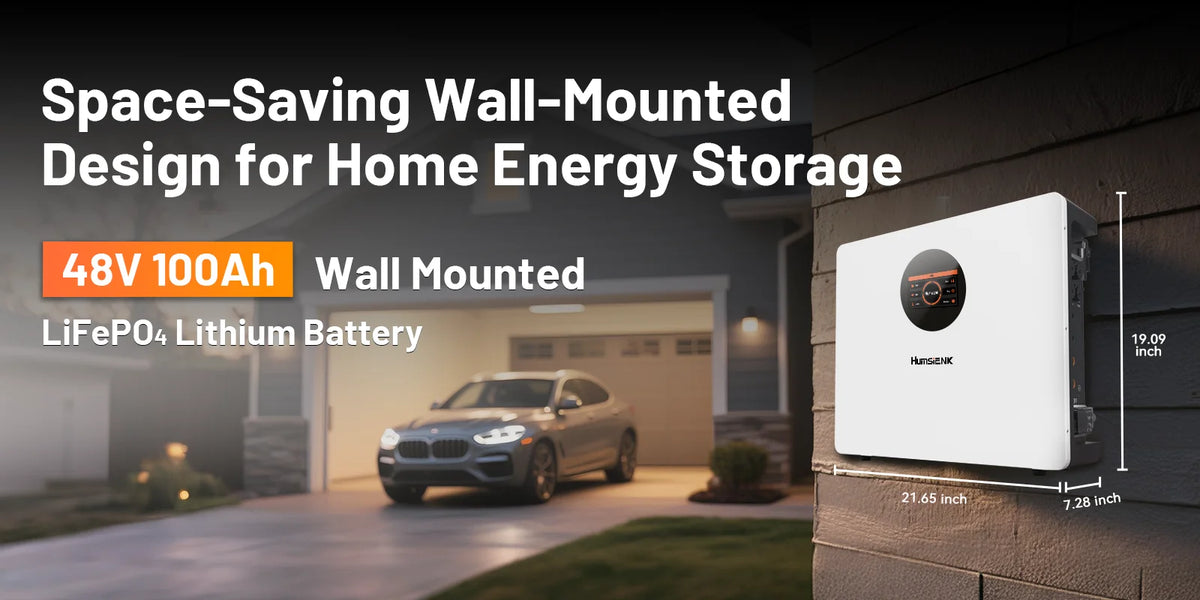

| Dimensions (L x W x H) | 550 x 485 x 185.5 mm |
| Approx. Weight | 50 kg |
| Dangerous goods classes | 9 |
| Certification | IEC62619, CE-EMC, CE-RoHS, CE-Battery, FCC-SDoC, UN38.3 and MSDS |
| Case Material | Metal |
| Enclosure Protection | IP54 |
Electrical Data
| Nominal Voltage | 51.2V |
| BMS Low Voltage Cutoff | 40V |
| Nominal Capacity | 100Ah |
| Energy | 5120Wh |
| Output Power | 5120W |
| Self Discharge | < 3% / month |
Discharge Data
| Max. Continuous Discharge Current | 100A |
| BMS Discharge Cut-Off Current | 300A±50A |
| Short Circuit Protection | Yes |
Charge Data
| Recommended Charge Current | 20A (0.2C) |
| Maximum Charge Current | 100A |
| Recommended Charge Voltage | 56.8V |
| BMS Charge Cut-Off Current | 130A±30A |
| Maximum Batteries in parallel | Max. 15 |
Temperature Data
| Discharge Temperature | -20ºC to 65ºC |
| Charge Temperature | 0ºC to 50ºC |
| Storage Temperature | -20ºC to 45ºC |
App Download
- Search & Click to download the App: Search for "HumSienk Smart BMS" on Google Play or the Apple Store, and click to download.
- Perform basic setup & Accept terms: Allow the app to access your phone’s Bluetooth and Wi-Fi.
- Connect your Bluetooth battery: One way is to click the search icon in the upper right corner, find your Bluetooth battery, and connect; another way is to open the scan button in the search box and scan the QR code on your Bluetooth battery.
- Select the preferred language: There is a language selection box at the top of the app. Currently supported languages include Chinese, English, Japanese, Spanish, French and Dutch.
