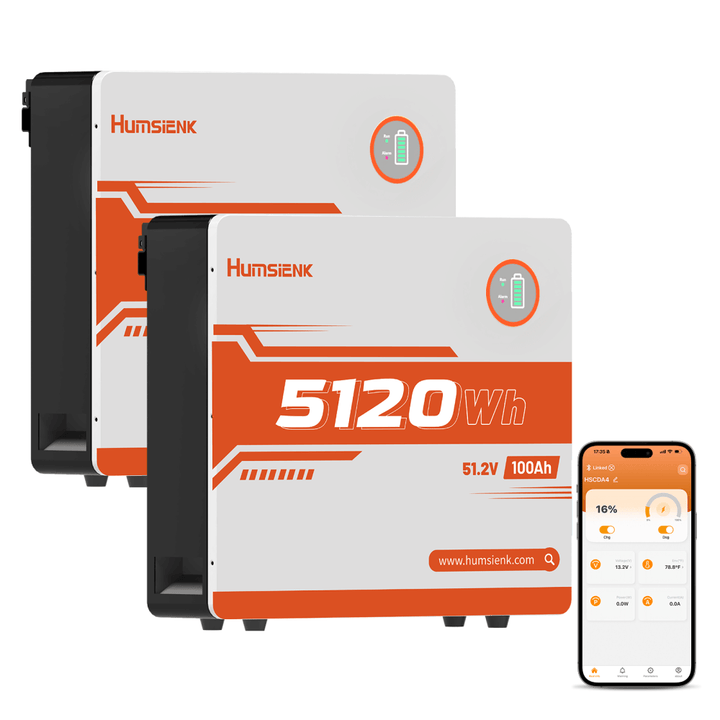

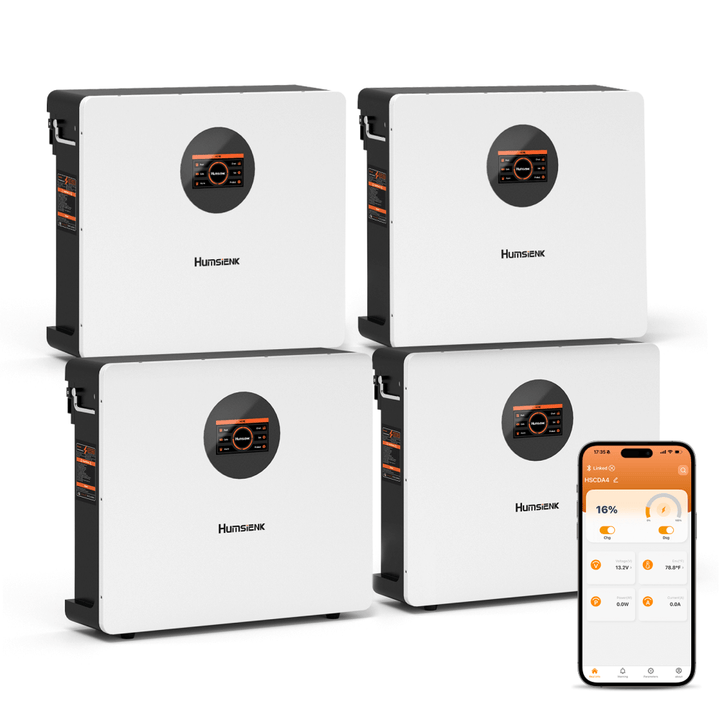

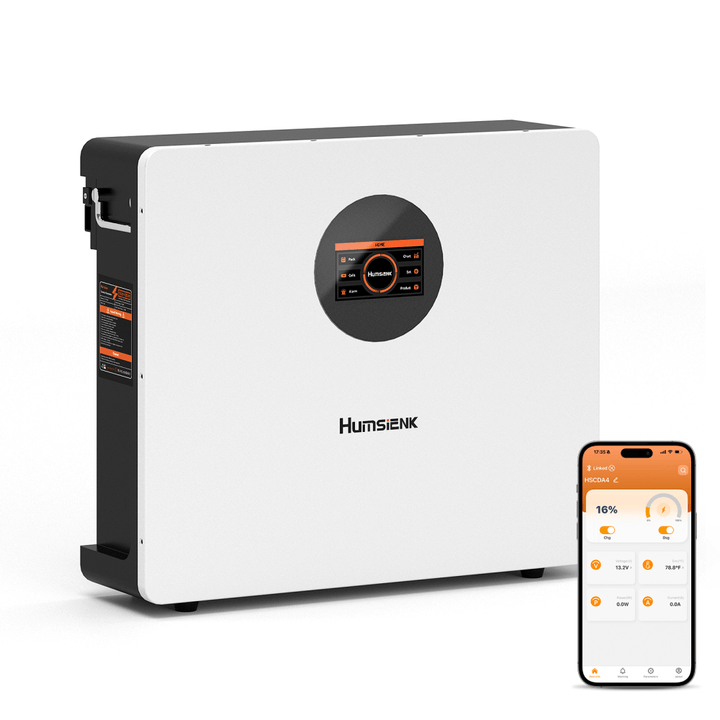

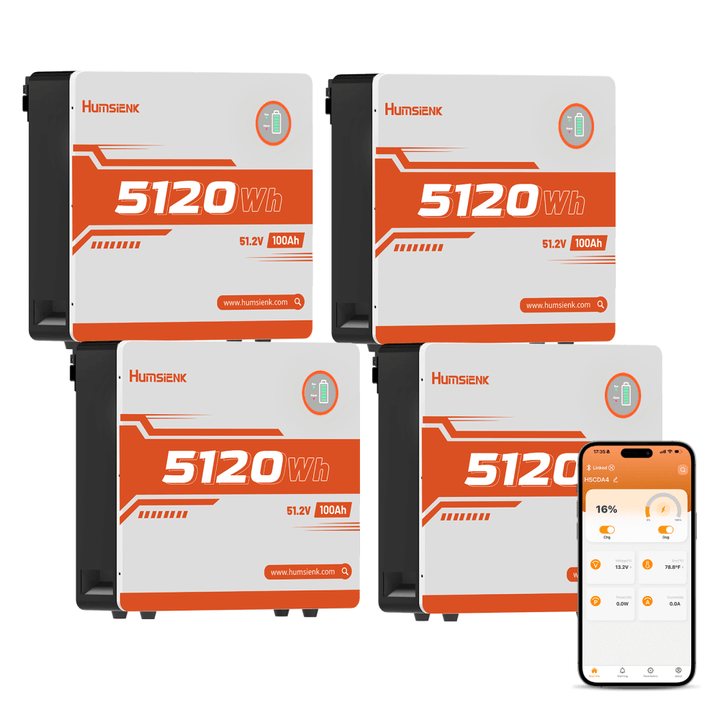

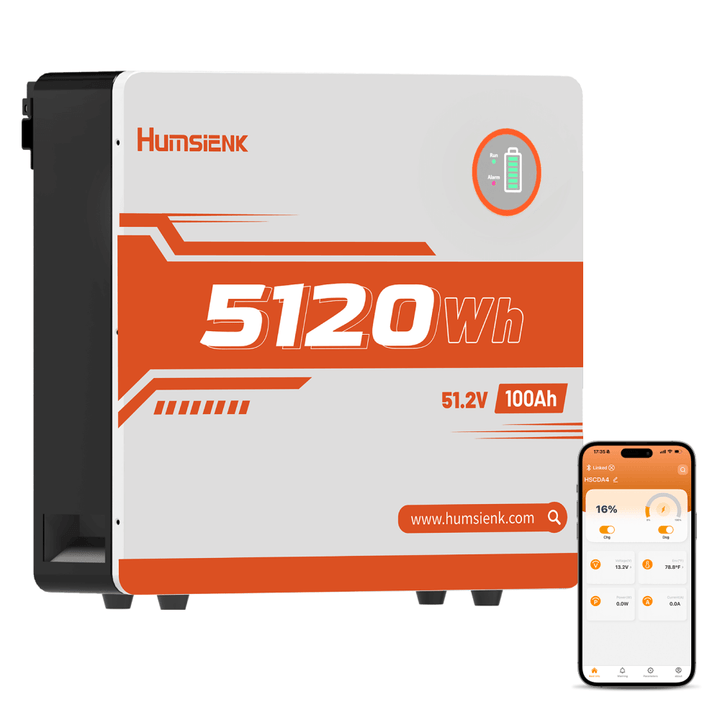

Humsienk 51,2V 100Ah LiFePO4 Solar Battery, 5.12kWh Wall-Mounted Home Battery Storage
The First Wall-mounted Battery, Version 2 Battery with active cell balancing! Mega 5kWh battery can be placed vertically on the ground or mounted on a wall.
Dimensions ：L550 x W485 x H185.5 mm
Weight：50 kg
- High Capacity & Long Endurance: 5120Wh (48V 100Ah) large capacity, meeting multi-device power needs for households.
- Cell-Balancing, Version 1 features passive cell balancing; Version 2 features active balancing.
- Double Safety Protection: 100A BMS + 125A circuit breaker with 6-fold protection (over-charge, over-discharge, over-current, over-voltage, short-circuit, high/low temperature).
- Long Cycle Life: Up to 6000 cycles @ 80% DOD, delivering over 10 years of durable lifespan.
- Wall-Mounted Space Saving: Saves 30% installation space compared with 4×12V 100Ah series batteries, with easy wall-mounted installation.
- Smart Monitoring & Management: LCD touchscreen + Bluetooth + mobile/computer APP, enabling real-time battery status monitoring and control.
- 15-Unit Parallel Expansion: Supports up to 15 units in parallel, delivering 76.8kWh total energy and 76.8kW total power.
- All-Weather Stable Operation: IP54 waterproof & dustproof, operating temperature -4°F ~ 140°F (discharge) and 32°F ~ 131°F (charge).
- Various Inverters Compatibility: Compatible with mainstream inverter brands such as Victron, Pylontech, Growatt, Deye, etc.
- Multi-Scenario Use & Plug-and-Play Connectivity: Supports CAN, RS485, RS232, and Bluetooth, ideal for off-grid homes, solar systems, RVs, and marine applications.
- Reliable Certification & Warranty: 5-Year Warranty with certifications including IEC62619, CE-EMC, CE-RoHS, CE-Battery, and FCC-SDoC.
| Product Data | |
|---|---|
| SKU | HS48V100AH100WALLBTNEW |
| Category | LiFePO4 Deep Cycle Battery |
| Dimensions (L × W × H) | 550 × 485 × 185.5 mm |
| Approx. Weight | 50 kg |
| Dangerous Goods Class | Class 9 |
| Certification | IEC62619, CE-EMC, CE-RoHS, CE-Battery, FCC-SDoC, UN38.3, MSDS |
| Case Material | Metal |
| Ingress Protection Rating | IP54 |
| Electrical Characteristics | |
| Nominal Voltage | 51.2V |
| BMS Low Voltage Cut-Off | 40V |
| Nominal Capacity | 100Ah |
| Energy | 5120Wh |
| Output Power | 5120W |
| Self Discharge | < 3% / Month |
| Discharge Data | |
| Max Continuous Discharge Current | 100A |
| BMS Discharge Cut-Off Current | 300A ± 50A |
| Short Circuit Protection | Yes |
| Charge Data | |
| Recommended Charge Current | 20A (0.2C) |
| Maximum Charge Current | 100A |
| Recommended Charge Voltage | 56.8V |
| BMS Charge Cut-Off Current | 130A ± 30A |
| Maximum Batteries in Parallel | Max. 15 |
| Temperature | |
| Discharge Temperature | -20°C to 65°C |
| Charge Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 45°C |
- Search & Click to download the App: Search for "HumSienk Smart BMS" on Google Play or the Apple Store, and click to download.
- Perform basic setup & Accept terms: Allow the app to access your phone’s Bluetooth and Wi-Fi.
- Connect your Bluetooth battery: One way is to click the search icon in the upper right corner, find your Bluetooth battery, and connect; another way is to open the scan button in the search box and scan the QR code on your Bluetooth battery.
- Select the preferred language: There is a language selection box at the top of the app. Currently supported languages include Chinese, English, Japanese, Spanish, French and Dutch.
Mega 5.12kWh Energy · Smart LCD Display · 6,000+ Deep Cycles
The Humsienk 51.2V 100Ah LiFePO4 Battery provides 5120Wh capacity and 5.12kW max output, delivering reliable power for home backup and off-grid solar systems. Featuring an LCD touchscreen and Bluetooth 5.2 connectivity, it offers real-time monitoring and smart control. With a 100A BMS and 125A circuit breaker, 6000+ cycles, 10-year lifespan, and low-temperature protection down to -20°C (-4°F), this wall-mounted battery ensures safe, stable, and long-lasting energy storage.
Advanced 7-Layer Safety Protection
Equipped with a 100A smart BMS and 125A circuit breaker, this battery delivers reliable protection for your solar energy storage system. Its 7-layer safety system guards against over-voltage, over-current, short-circuit, and extreme temperatures, ensuring safe and stable operation.

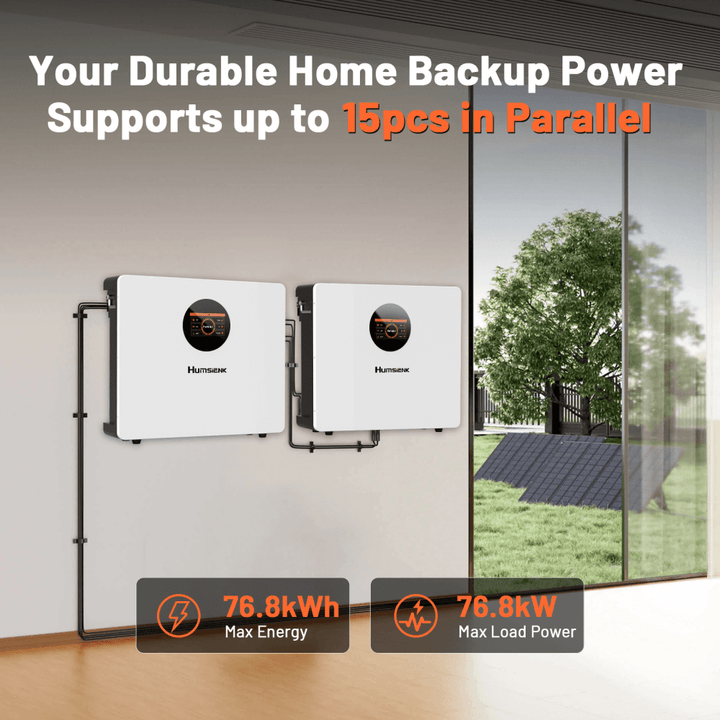

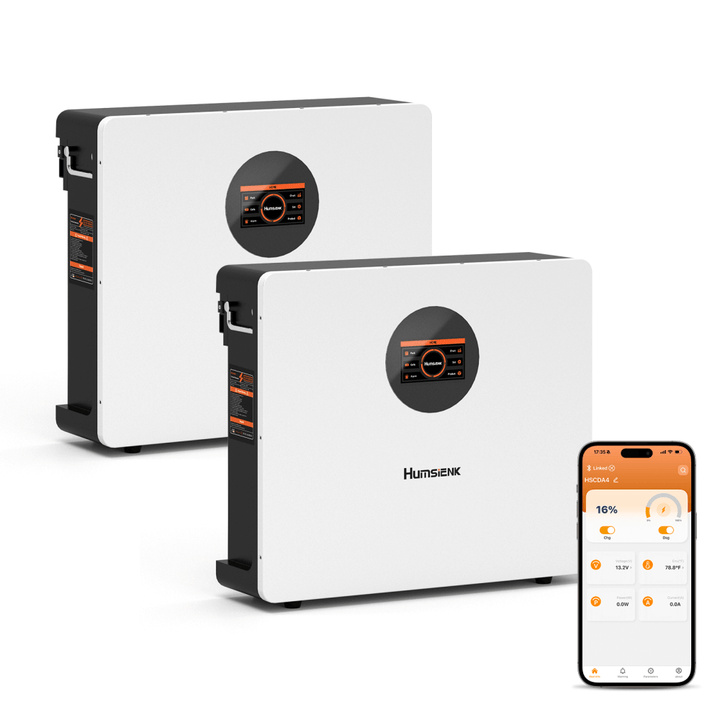

Expandable to 76.8kWh with 15 Units
Expand your system up to 15 units in parallel for a total of 76.8kWh energy and 76.8kW power. Each modular unit provides 5.12kWh, delivering family-scale off-grid storage for home backup needs.

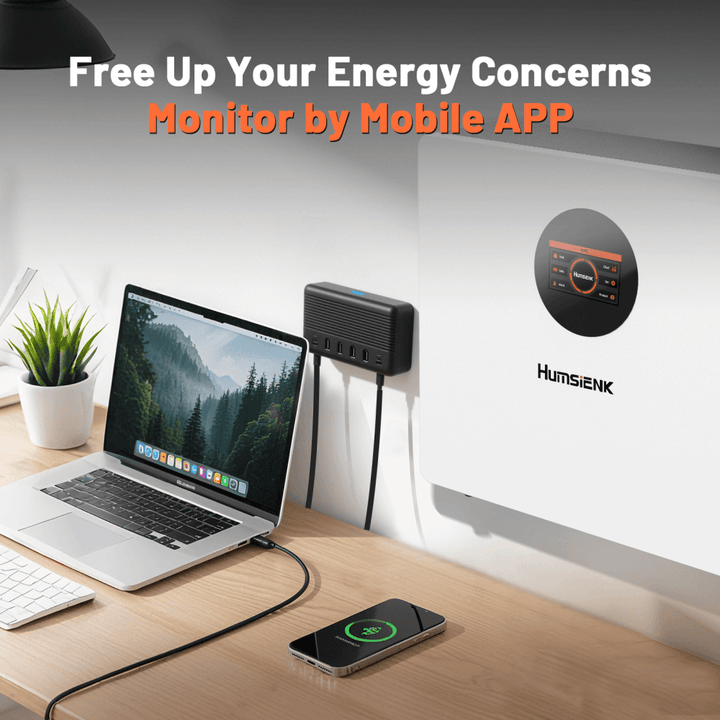

LCD Smart Monitoring & Connectivity
Real-time battery monitoring via LCD, Bluetooth, or mobile app. View SOC, voltage, temperature, and status. 48V lithium battery for solar systems, supporting CAN, RS485, and RS232 interfaces for plug-and-play and safe, stable operation.
All-Weather Operation with IP54 Metal Shell Design
The wall-mounted metal shell features an IP54 rating for waterproof and dustproof protection. Operating from -20°C (-4°F) to 60°C (140°F), it ensures stable performance for marine, RV, and off-grid applications.
Various Inverters Compatibility for Top Solar Brands
Compatible with mainstream inverter brands such as Victron, Pylontech, Growatt, and Deye. Seamlessly integrates with most inverters on the market for easy energy storage system setup.
Accordion
It is a space-saving 5.12kWh energy storage system that can be securely mounted on a wall or placed vertically on the floor for home backup power.
You can connect up to 15 units in parallel to expand your total energy storage capacity to an impressive 76.8kWh.
It’s a true Plug & Play system! With built-in standard CAN and RS485 communication ports, it is fully compatible with most top-tier inverter brands on the market (including Victron, Deye, Growatt, and more).
Yes, you can download the HumSienk Smart BMS App to monitor your battery's real-time voltage, capacity, and temperature directly from your phone.
Version 2 is upgraded with an advanced Active Cell Balancing technology, which maximizes the battery's lifespan and efficiency better than the passive balancing in Version 1.
This is the core technology that dictates battery longevity! While standard batteries use "passive balancing" (which wastes excess energy as heat), our Version 2 features advanced Active Cell Balancing. It smartly and losslessly transfers energy between individual cells. This ensures you can utilize 100% of the true capacity, enjoy faster charging, and get a significantly longer overall lifespan.
It is equipped with a dual-safety system featuring a 100A Smart BMS and a built-in 125A circuit breaker to protect against overcharging and short circuits.
It is absolutely safe for indoor residential use. The battery is protected by a rugged metal casing (IP54 rated) and features a Double Safety Lock system: an advanced 100A Smart BMS combined with a 125A physical circuit breaker. If the system detects grid anomalies, extreme temperatures, or a short circuit, it physically cuts off the power in milliseconds to keep your home safe.
