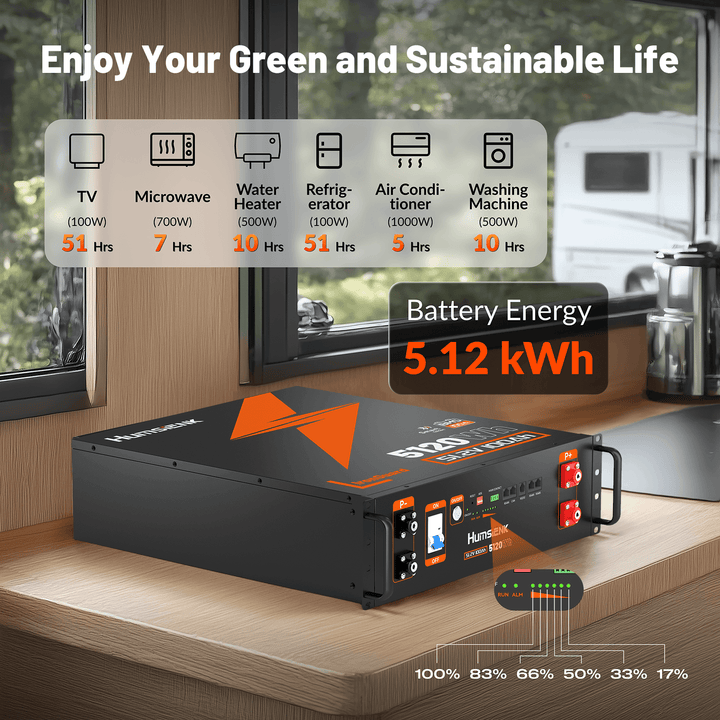

【⚡Upgraded】Humsienk 51.2V 100Ah Server Rack Battery (3U Chassis), 5.12kWh Home Backup Power
Upgraded Great Home Backup Power! Upgraded to 4 Terminals and added a Dial Switch. Mega 5kWh energy in 3U Chassis size, ideal for home power supply, UPS applications.
- Upgrade points: 2 Terminals → 4 Terminals, one more communication interface, adding Dial switch & BYD prismatic cells.
- Mega 5kWh energy in 3U Chassis size, fully meet your half-day power needs.
- Compatible with most inverter brand on the market, like Victron, Deye, Growatt.
- Seamless CAN, RS485, RS232, and Bluetooth monitoring.
- Basic 7+ BMS protection, overvoltage protection, deep discharge protection, battery temperature (high/low-temperature) protection, undervoltage/overload protection, charging current protection.

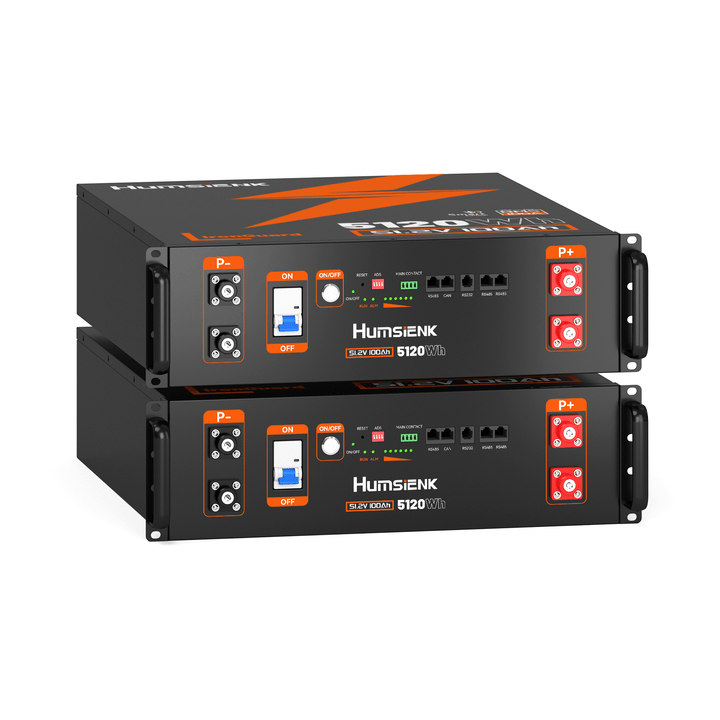

- Max. 16P expansion, up to 81.92kWh energy & 81.92kW power.
- 5-year warranty, IEC62619, CE-EMC, CE-RoHS, CE-Battery and FCC-SDoC certified.
Product Data
| SKU | HS48V100AH100RACK-3UBT-EU |
| Category | LiFePO4 Deep Cycle Battery |
| Dimensions (L x W x H) | 500 x 440 x 133 mm |
| Approx. Weight | 43.75 kg |
| Terminal Type | M8 |
| Dangerous goods classes | 9 |
| Certification | UL1973, IEC62619, CE, UN38.3, and MSDS |
| Case Material | Iron shell |
| Enclosure Protection | IP20 |
Electrical Data
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Energy | 5120Wh |
| Self Discharge | < 3% / month |
Discharge Data
| Max. Continuous Discharge Current | 100A |
| BMS Discharge Cut-Off Current | 120A ± 10A (10s) |
| Short Circuit Protection | Yes |
| Short Circuit Recovery Methods | Remove the charger, Remove Loads |
Charge Data
| Recommended Charge Current | 20A |
| Maximum Charge Current | 100A |
| Recommended Charge Voltage | 51.2V |
| Maximum Charge Voltage | 58.4V |
| BMS Charge Cut-Off Current | 110A ± 10A (1-1.5s) |
| Maximum Batteries in parallel | 16 |
Temperature Data
| Discharge Temperature | -20ºC to 65ºC |
| Charge Temperature | 0ºC to 55ºC |
| Storage Temperature | 0ºC to 60ºC |
| BMS High Temperature Cut-Off | 60ºC to 75ºC |
| BMS Low Temperature Cut-Off | -25℃ to 5℃ |

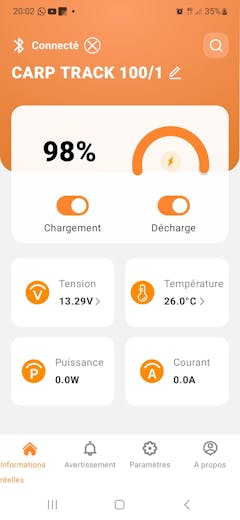

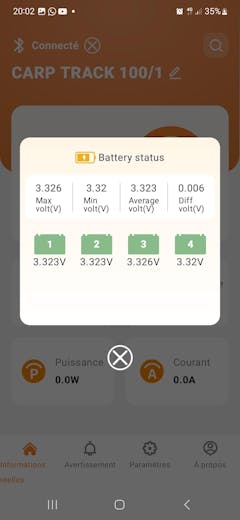

- Search & Click to download the App: Search for "HumSienk Smart BMS" on Google Play or the Apple Store, and click to download.
- Perform basic setup & Accept terms: Allow the app to access your phone’s Bluetooth and Wi-Fi.
- Connect your Bluetooth battery: One way is to click the search icon in the upper right corner, find your Bluetooth battery, and connect; another way is to open the scan button in the search box and scan the QR code on your Bluetooth battery.
- Select the preferred language: There is a language selection box at the top of the app. Currently supported languages include Chinese, English, Japanese, Spanish, French and Dutch.
One Of The Most Affordable & Highly Competitive 48V Server Batteries On The Market
0Ah
Nominal Capacity
0W
Output Power
0Wh
More Usable Energy
0A
Max. Charging & Discharging Current
FAQs
A server rack battery is a modular energy storage system designed for data centers, telecom networks, and industrial UPS setups.

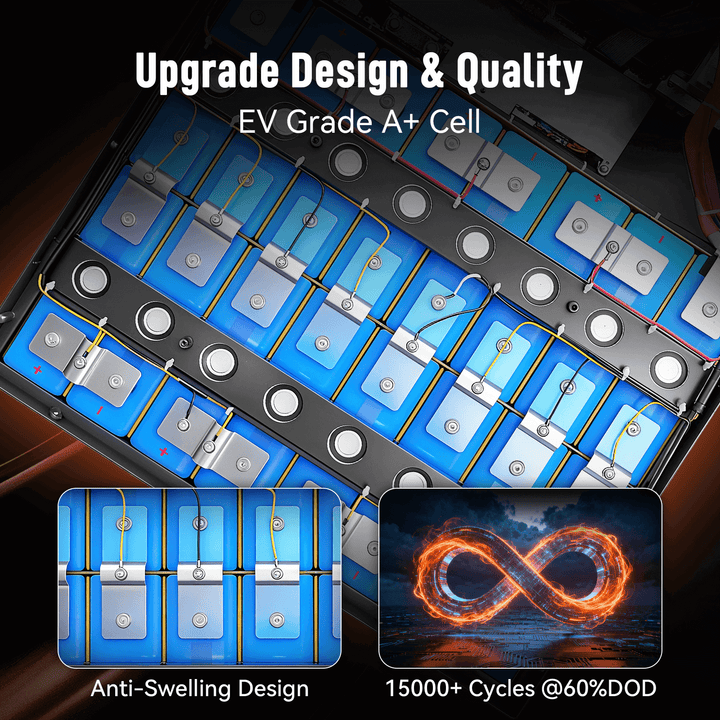

Using 100% brand-new Grade A prismatic cells, ensuring up to 6000 cycles at 80% depth of discharge (DOD).
This home backup power battery is built-in 100A BMS, and a 125A short-circuit protection switch on the front panel.

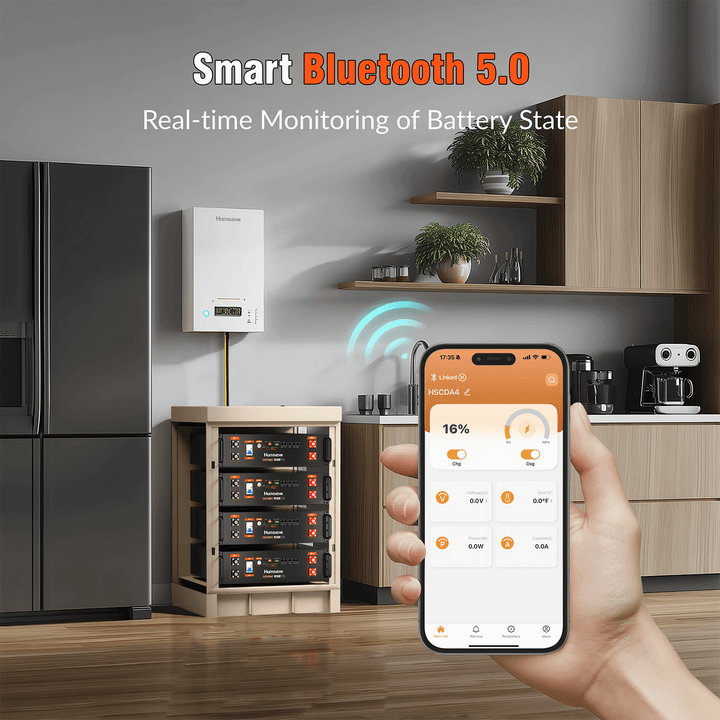

Our 51.2V 100Ah server rack battery communicate via built-in Bluetooth with HumSienk Smart BMS App. RS485, RS232, and CAN on the front panel.
Compatible with most inverter brand on the market, the following brands are for reference only:
- Victron Energy
- Deye
- Growatt
- INVT
- LUXPOWER TEK
- MEGAREVO
- MUST
- SMA
- SMK SOLAR
- SOFAR
- SOLIS
- SOROTEC
- SRNE
- AISWEI
- GOODWE
- PYLONTECH
Max. 16. This rack battery can support up to 16 in parallel.
There are 4 charging methods:
- Solar Charging Only
- Priority Solar Power
- Priority Mains Power
- Hybrid Charging
It should be noted that the recommended charging voltage is 51.2V and the recommended charging current is 20A.
