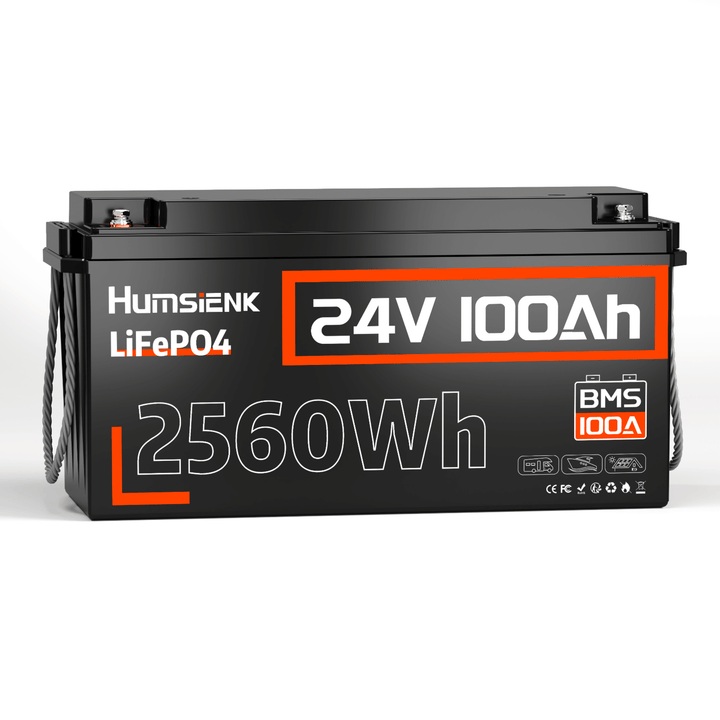

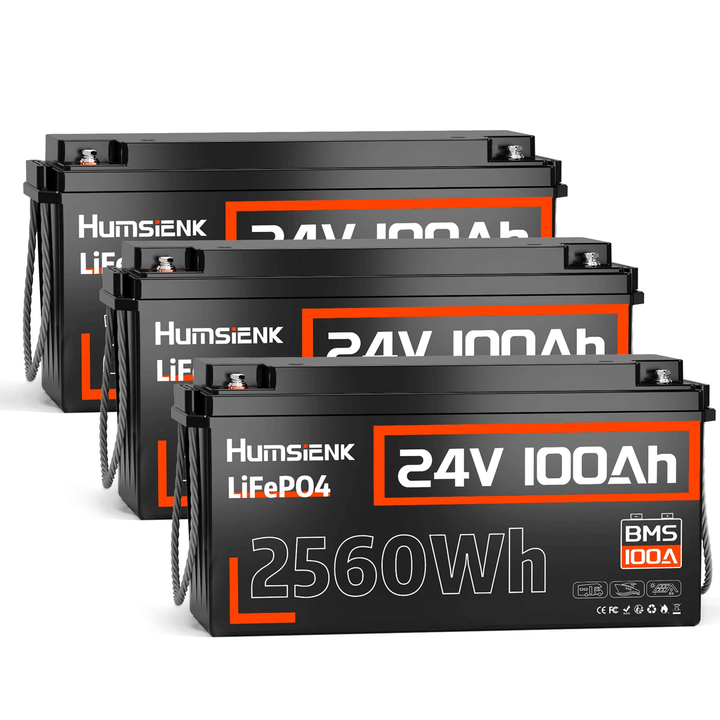

Humsienk ORIGIN 24V 100Ah LiFePO4 Battery
Tax & shipping included
- Made of 8 units prismatic EV grade A+ cells
- 6000+ cycles at 80% DoD & 10+ years lifetime
- 100A BMS 100% protection: overcurrent protection / overcharge protection / low-temp protection etc.
- 2560Wh of usable energy, 2560Wh of high output power

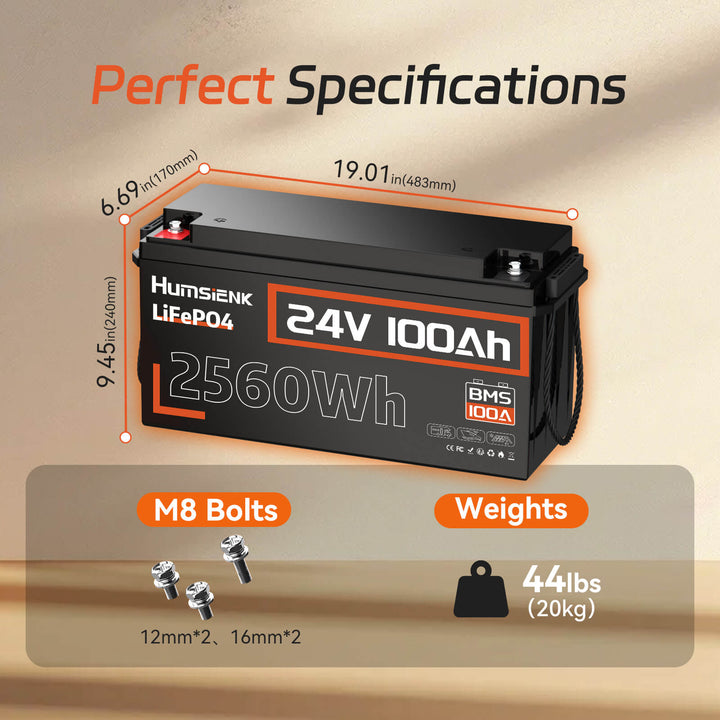

- L483 x W170 x H240 mm - Takes up much less space than two 12V 100Ah batteries in series
- 20 kg, lighter than lead-acid with more cycles

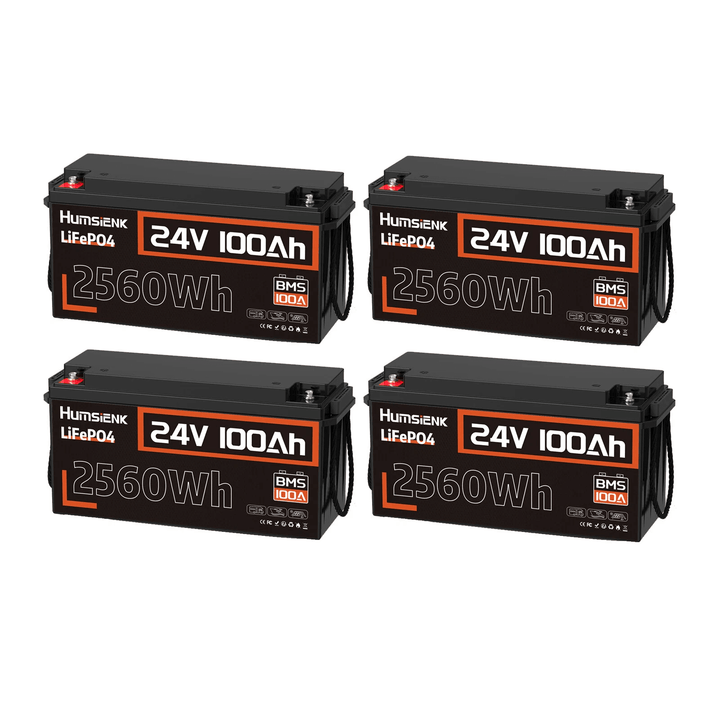

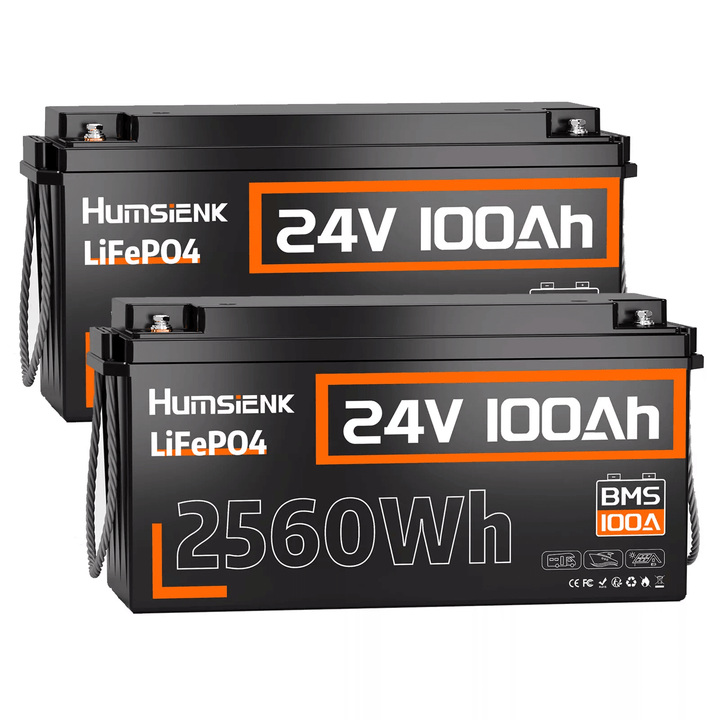

- Flexible in series and parallel (Max. 4P2S, up to 20480Wh)
- 3 charging ways & Max. 100A charging and discharging
- IP65 Waterproof
- Certified by IEC62133, CE-EMC, CE-RoHS, CE-Battery, FCC-SDoC, UN38.3 and MSDS
- Suitable for home energy storage, solar energy storage, marine, RV
- Recommended charger: 25.6V 10A - 20A LiFePO4 charger
- Note: The battery is suitable for use as deep cycle battery rather than starter battery
Special Add-Ons
Humsienk ORIGIN 24V 200Ah Plus LiFePO4 Battery (250A BMS)
Humsienk PULSAR 24V 4200W Pure Sine Wave Inverter
Shipped from Poland or Germany, nearest warehouse. 2–5 business day delivery, varies by country. See shipping policy.
Product item Warranty period
LiFePO4 Batteries (≤50Ah) — 3 Years
LiFePO4 Batteries (>50Ah) — 5 Years
Refurbished Batteries — 3 Years
Battery Chargers — 3 Years
Other Battery Accessories — 1 Years
Certified with CE, CE EMC, E-Mark, FCC, RoHS and UN38.3. Non-toxic LiFePO4 chemistry, recyclable construction,safe for renewable energy storage applications.
Enjoy hassle-free 30-day returns and our price protection guarantee. If you find a lower price, contact our support team for a refund. See policy for details.
-
Free Local Shipping
-
VAT & Duty Free
-
24/7 Expert Support
-
Protection Upgrade
Battery Performance
100A
Continuous Discharge
2560Wh
Energy Capacity
2560W
Output Power
Specifications
Nominal Voltage
25.6V
Nominal Capacity
100Ah
Energy
2560Wh
Terminal
M8
Cycle Life
6000@DOD80%
Months Self Discharge
≤3%/Month
Efficiency Of Charge
100%@0.2C
Efficiency Of Discharge
96~99%@0.5C
Charge Voltage
29V±0.2V
Charge Mode
CC/CV
Charge Recommended Current
20A
Max. Continuous Charge Current
100A
Discharge Cut-Off Voltage
20V
Max. Continuous Discharge Current
100A
Discharge Recommended Current
50A
Ingress Protection Rating
IP65
Storage Temperature
32°F~113°F/0°C~45°C
Discharge Temperature
-4°F~158°F/-20°C~70°C
Charge Temperature
32°F~149°F/0°C~65°C
Weight
19kg±3%/42.1lb±3%
Size
482.6×170×241(mm)/19×6.7×9.49(inch)
Plastic Case
ABS
What's in the Box
24V 100Ah
×1
M8 Bolts
×2
User Manual
×1
Plastic Insulation Cap
×2
Product Documents
HS24V 100Ah Manual
User Manual & Specification Sheet · English PDF
- IEC 62619
- UN 38.3
- RoHS
- CE
- FCC
