- Intelligentes Bluetooth
- Abschaltung bei niedriger Temperatur
- Aktives Balancieren
- Multiprotokoll
- LCD-Steuerung
Humsienk HAVEN 51,2 V 100 Ah LiFePO4-Solarbatterie, 5,12 kWh wandmontierter Heimbatteriespeicher
Tax & shipping included
- Hohe Kapazität & Lange Ausdauer: 5120 Wh (48 V 100 Ah) große Kapazität, Treffen Strombedarf mehrerer Geräte in Haushalten.
- Cell-Balancing, Version 1 bietet passives Zell-Balancing; Version 2 bietet Aktive Ausgleichsmaßnahmen.
- Doppelter Sicherheitsschutz: 100-A-BMS + 125-A-Leistungsschalter mit 6-facher Schutz (Überladung, Tiefentladung, Überstrom, Überspannung, Kurzschluss, zu hohe/zu niedrige Temperatur).
- Lange Lebensdauer: Bis zu 6000 Zyklen bei 80 % Entladungstiefe, Lieferung über 10 Jahre lange Lebensdauer.

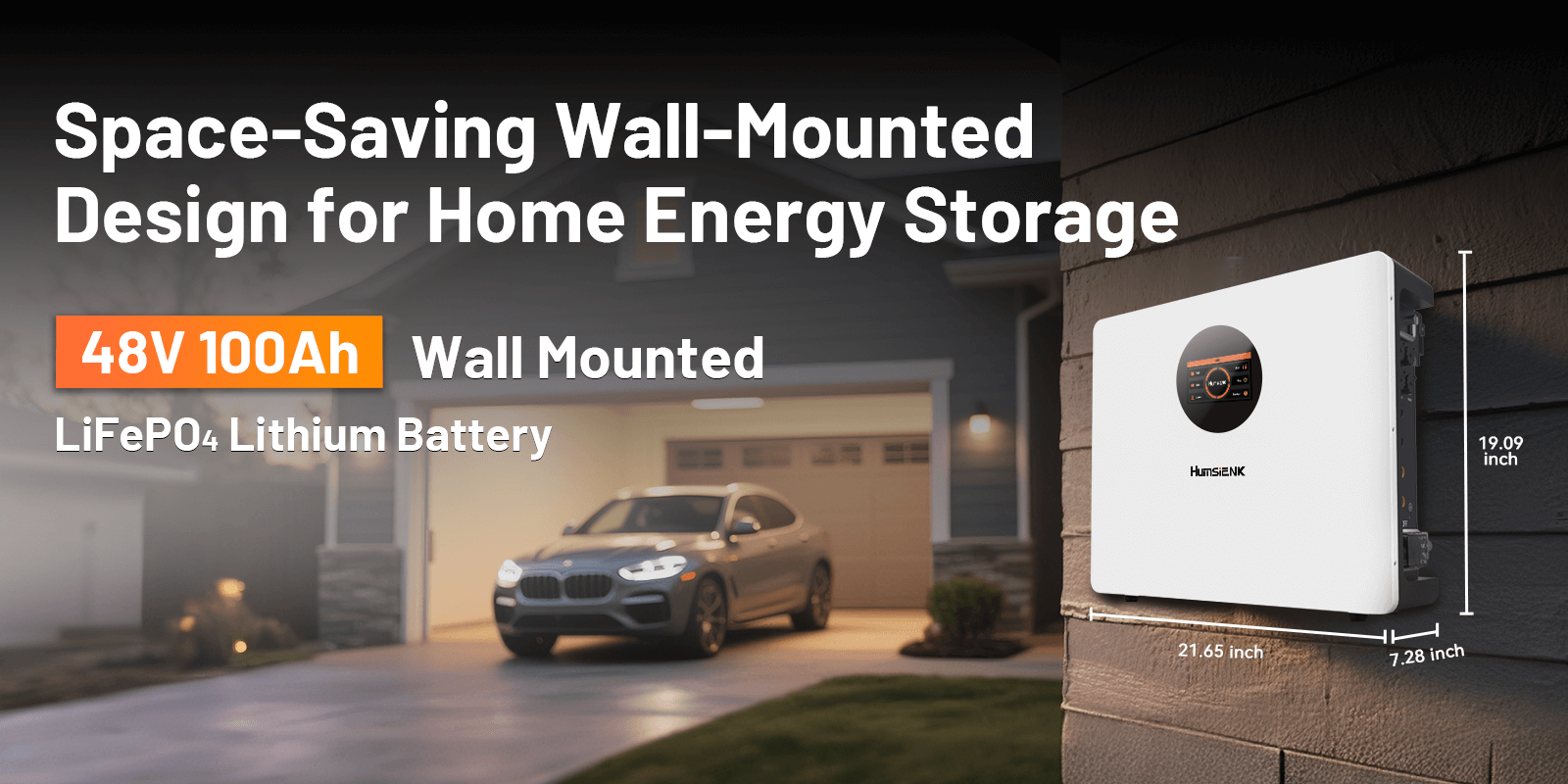

- Platzsparende Wandmontage: Speicherstände 30 % Installationsfläche gegenüber 4×12V 100Ah Reihenbatterien, mit einfache Wandmontage.
- Intelligente Überwachung & Management: LCD-Touchscreen + Bluetooth + Mobil-/Computer-App, Aktivierung Echtzeit-Batteriestatusüberwachung und -steuerung.
- Parallele Erweiterung mit 15 Einheiten: Unterstützt bis zu 15 Einheiten parallel, Lieferung 76,8 kWh Gesamtenergie Und 76,8 kW Gesamtleistung.
- Stallbetrieb bei jedem Wetter: IP54 wasserdicht & staubdicht, Betriebstemperatur -4°F ~ 140°F (Auslass) Und 32°F ~ 131°F (Ladung).
- Kompatibilität verschiedener Wechselrichter: Kompatibel mit gängigen Wechselrichtermarken wie Victron, Pylontech, Growatt, Deye, usw.
- Einsatz in mehreren Szenarien & Plug-and-Play-Konnektivität: Unterstützt CAN, RS485, RS232 und Bluetooth, ideal für netzunabhängige Häuser, Solaranlagen, Wohnmobile und maritime Anwendungen.
- Zuverlässige Zertifizierung & Garantie: 5 Jahre Garantie mit Zertifizierungen einschließlich IEC62619, CE-EMV, CE-RoHS, CE-Batterie und FCC-SDoC.
Special Add-Ons
Humsienk PULSAR 48V 6200W reiner Sinuswellen-Wechselrichter
Shipped from Poland or Germany, nearest warehouse. 2–5 business day delivery, varies by country. See shipping policy.
Product item Warranty period
LiFePO4 Batteries (≤50Ah) — 3 Years
LiFePO4 Batteries (>50Ah) — 5 Years
Refurbished Batteries — 3 Years
Battery Chargers — 3 Years
Other Battery Accessories — 1 Years
Certified with CE, CE EMC, E-Mark, FCC, RoHS and UN38.3. Non-toxic LiFePO4 chemistry, recyclable construction,safe for renewable energy storage applications.
Enjoy hassle-free 30-day returns and our price protection guarantee. If you find a lower price, contact our support team for a refund. See policy for details.
-
Free Local Shipping
-
VAT & Duty Free
-
24/7 Expert Support
-
Protection Upgrade
Battery Performance
100A
BMS
5120Wh
Energy
5120W
Output Power
Specifications
Nominal Voltage
Nominal Capacity
Energy
Terminal
Cycle Life
Months Self Discharge
Efficiency Of Charge
Efficiency Of Discharge
Charge Voltage
Charge Mode
Charge Recommended Current
Max. Continuous Charge Current
Discharge Recommended Current
Max. Continuous Discharge Current
Discharge Cut-Off Voltage
Charge Temperature
Discharge Temperature
Storage Temperature
Ingress Protection Rating
Shell Type
Size
Weight
What's in the Box
Battery Module
×1
Wall-Mounted Fixing Plate
×1
Support Bracket
×1
Wall Hook
×2
Positive & Negative Power Cables (4 AWG, 1.5 m)
×2
Communication Cable (RJ45, 1.5 m)
×1
M10 × 100 mm (3.94 in) Pull-Out Bolt
×2
M6 × 12 mm (0.47 in) Combination Screw
×4
M4 × 8 mm (0.31 in) Screw
×4
Product Documents
HS51.2V 100Ah Wall BT Manual
User Manual & Specification Sheet · English PDF
- IEC 62619
- UN 38.3
- RoHS
- CE
- FCC
FAQ
It is a space-saving 5.12kWh energy storage system that can be securely mounted on a wall or placed vertically on the floor for home backup power.
Version 2 is upgraded with an advanced Active Cell Balancing technology, which maximizes the battery's lifespan and efficiency better than the passive balancing in Version 1.
Yes, you can download the HumSienk Smart BMS App to monitor your battery's real-time voltage, capacity, and temperature directly from your phone.
This is the core technology that dictates battery longevity! While standard batteries use "passive balancing" (which wastes excess energy as heat), our Version 2 features advanced Active Cell Balancing. It smartly and losslessly transfers energy between individual cells. This ensures you can utilize 100% of the true capacity, enjoy faster charging, and get a significantly longer overall lifespan.
It is equipped with a dual-safety system featuring a 100A Smart BMS and a built-in 125A circuit breaker to protect against overcharging and short circuits.
It is absolutely safe for indoor residential use. The battery is protected by a rugged metal casing (IP54 rated) and features a Double Safety Lock system: an advanced 100A Smart BMS combined with a 125A physical circuit breaker. If the system detects grid anomalies, extreme temperatures, or a short circuit, it physically cuts off the power in milliseconds to keep your home safe.
You can connect up to 15 units in parallel to expand your total energy storage capacity to an impressive 76.8kWh.
It’s a true Plug & Play system! With built-in standard CAN and RS485 communication ports, it is fully compatible with most top-tier inverter brands on the market (including Victron, Deye, Growatt, and more).
