Humsienk 12V 314Ah Mini LiFePO4 Battery (100A BMS & Bluetooth)
Humsienk 12V 314Ah Mini LiFePO4 Lithium Battery size and weight
Upgraded Humsienk 12V 300Ah series battery, Humsienk 12V 314Ah Mini LiFePO4 lithium battery
Humsienk 12V 314Ah Mini LiFePO4 lithium battery with wide working temperature
Humsienk 12V 314Ah Mini LiFePO4 lithium battery with Bluetooth 5.0
Humsienk 12V 314Ah Mini LiFePO4 lithium battery with massive 4019Wh energy powering multiple applications
Humsienk 12V 314Ah Mini LiFePO4 lithium battery supports max. 4P4S battery connection to 64.30 kWh energy
Key features of Humsienk 12V 314Ah Mini LiFePO4 lithium battery
2 units Humsienk 12V 314Ah Mini LiFePO4 Battery (100A BMS & Bluetooth)
3 units Humsienk 12V 314Ah Mini LiFePO4 Battery (100A BMS & Bluetooth)
4 units Humsienk 12V 314Ah Mini LiFePO4 Battery (100A BMS & Bluetooth)

Humsienk 12V 314Ah Mini LiFePO4 Battery (100A BMS & Bluetooth)

€599,99 EUR €399,99 EUR
Order in the next [totalHours] hours %M minutes to get it between and

Humsienk 12V 314Ah Mini LiFePO4 lithium battery with ultra compact battery size is equipped with premium EV-grade A LiFePO4 prismatic cells and integrated Bluetooth 5.0 for real-time monitoring (voltage, current, temperature, SOC). This ultra-compact powerhouse delivers up to 4019.2Wh of usable energy and supports high-power applications.

Quantity: 1-PACK

1-PACK
2-PACK
3-PACK (€385.99/pcs)
4-PACK (€385.99/pcs)
Login to use WishlistCompare

shopify paygoogle payvisaamerican expresspaypalmasterunionpay
Ask a Question

Frequently Bought Together

  • This item: Humsienk 12V 314Ah Mini LiFePO4 Battery (100A BMS & Bluetooth)
    €599,99 €399,99
  • Humsienk 500A Battery Monitor with Shunt
    €99,99 €85,99
Total price:€699,98 €485,98
Description
  • Made of 4 units prismatic EV grade A+ cells
  • 6000+ cycles at 80% DoD & 10+ years lifetime
  • 100A BMS 100% protection: overcurrent protection / overcharge protection / low-temp protection etc.
  • 4019.2Wh of energy, 1280W of output power

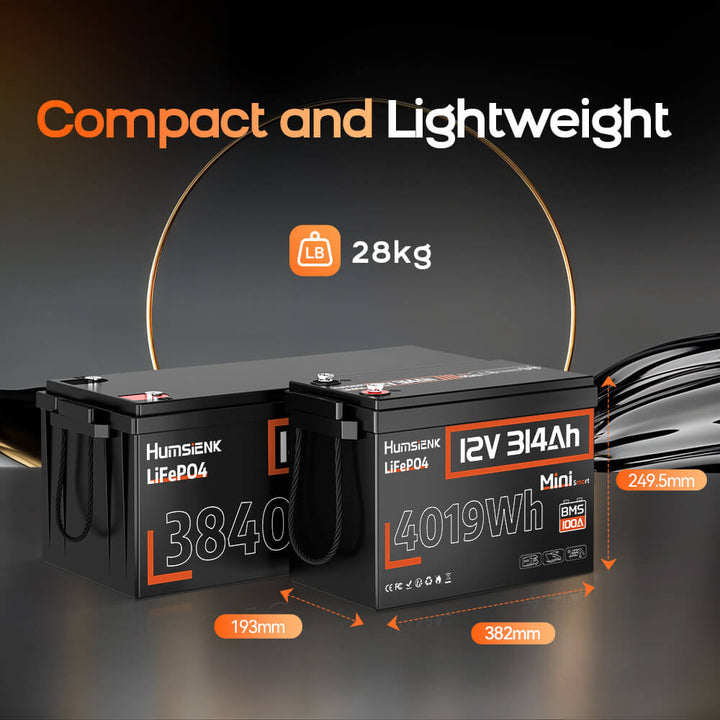

  • L382 x W193 x H249.5 mm - Features a mini size for tight-space installation
  • 28 kg, lighter yet offers greater capacity than standard 300Ah models.
  • Flexible in series and parallel (Max. 4P4S, up to 64.307 kWh)
  • IP65 Waterproof
  • Certified by IEC62619, CE-EMC, CE-RoHS, CE-Battery and FCC-SDoC
  • Suitable for home energy storage, RV, solar energy storage, marine
  • 3 charging ways & Max. 100A charging and discharging
  • Recommended charger: 14.6V 60A LiFePO4 charger
  • Note: The battery is suitable for use as deep cycle battery rather than starter battery
Specification
Product Data
SKU HS12V314AH100MINIBT
Category LiFePO4 Deep Cycle Battery
Dimensions (L x W x H) 382 x 193 x 249.5 mm
Approx. Weight 28 kg
Terminal Type M8
Dangerous goods classes 9
Certification IEC62619, CE-EMC, CE-RoHS, CE-Battery, and FCC-SDoC
Case Material ABS
Enclosure Protection IP65
Electrical Data
Nominal Voltage 12.8V
Nominal Capacity 314Ah
Energy 4019.2Wh
Self Discharge < 3% / month
Discharge Data
Max. Continuous Discharge Current 100A
BMS Discharge Cut-Off Current 300 ± 30A (1.2s)
Short Circuit Protection Yes
Charge Data
Recommended Charge Current 60A (0.2C)
Maximum Charge Current 100A
Recommended Charge Voltage 14.6V
BMS Charge Cut-Off Current 110 ± 10A (1.2s)
Maximum Batteries in Series 4
Maximum Batteries in parallel 4
Temperature Data
Discharge Temperature -20ºC to 65ºC
Charge Temperature 0ºC to 55ºC
Storage Temperature 0ºC to 60ºC
BMS High Temperature Cut-Off 60ºC to 75ºC
BMS Low Temperature Cut-Off -25℃ to 5℃
Reviews

Customer Reviews

Based on 5 reviews
100%
(5)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
Richard M.
Great customer service

Tremendous power. Purchased two for my motorhome. Powers everything from A/C to microwave for about 3 days without having to run generator.

S
Steven R.
Good quality. Support was good

The first battery I received would not charge because the low temp sensor was faulty. I contacted support and they sent me a replacement and a return shipping label for the bad one. The new one charged up and works great. Seems to be good quality for a budget friendly battery.

G
Gary L.
Shipping was rhe problem

Not sure what happened in shipping, whether it was the manufacturer, Amazon, or FedEx, but the battery did not arrive in the original packaging. It was in a FedEx box that was roo large. Box had two foam packaging pieces and two sets of terminal bolts. Battery was able to move quite freely in the box. FedEx box was damaged quite a bit and held together with a bunch of tape. Battery has noticeable dings on one lower side, but did not go through the outer shell.

Put the battery on a slow charge and was able to get it completely full with no issues. No swelling, no overheating, and completed a full charge as expected. I will try to remember to come back and complete the review once I get the power station in use.

S
Simon

Me encanta esta bateria por su gran capacidad de 314 ah y 4019 watios

H
Harry Y.
Customer service

Had a problem with the battery not charging but after contacting the customer service, they guide me through the process and after that everything worked out great. The customer service is excellent and the product. I’m using it for last two weeks now it’s working great thank you for standing behind your products Not like the other brands.
The battery itself is heavy duty and they are selling it for a great price

0Ah

Nominal Capacity

0W

Output Power

0Wh

More Usable Energy

0A

Max. Charging & Discharging Current

Humsienk Upgraded 314Ah Mini Bluetooth LiFePO4 Battery

Compact Mini Design with High Energy Density and Smart Bluetooth Monitoring — Humsienk 12V 314Ah Mini LiFePO4 lithium battery delivers 4019.2Wh energy in a compact design, ideal for RVs, solar, off-grid, and marine use. Built-in Bluetooth enables real-time monitoring of SOC, voltage, current, and cycles via smartphone for smarter, safer energy management.

Versatile & Reliable Power

Humsienk 12V 314Ah LiFePO4 battery, equipped with A+ LiFePO4 cells, delivers stable and safe power. Smart Bluetooth and 100A BMS enable real-time monitoring and low-temp protection. Over 6000 cycles, 10-year lifespan. Compatible with solar panels, generators, and LiFePO4 chargers.

Powerful 100A BMS Protection

Humsienk 12V 314Ah LiFePO4 lithium battery features an advanced 100A BMS, providing full-spectrum protection including over-charge, over-discharge, over-current, over-heating, short circuit, and low-temperature defense. This ensures stable and safe operation in every application, giving you peace of mind and long-lasting performance.

Smart Bluetooth Real-time Monitoring

Comes with built-in bluetooth, enabling real-time monitoring of SOC, voltage, current, and cycle life directly from a smartphone. This smart design ensures safer operation, smarter energy management, and full control at your fingertips.

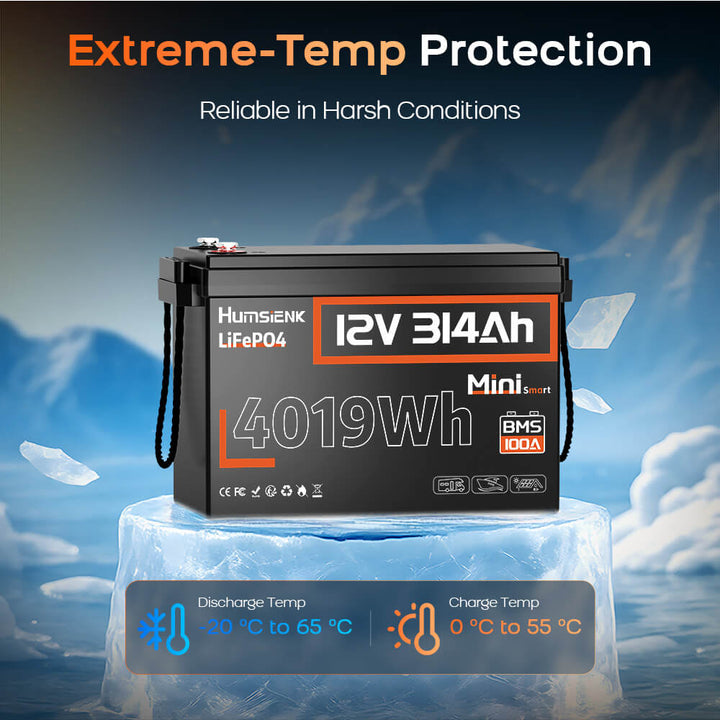

Works in Any Extreme Temp

Equipped with low-temperature protection, the Humsienk 12V 314Ah LiFePO4 battery ensures safe discharge from -20°C to 65°C and reliable charging from 0°C to 55°C. This wide temperature range guarantees stable performance and long-lasting power in both cold and hot environments.

High-Density 4019Wh Energy Supply

Unleash reliable, long-lasting energy with the Humsienk 12V 314Ah LiFePO4 battery! Boasting 4019Wh capacity, it provides extended power for multiple loads — from home appliances to outdoor equipment — ensuring stable performance whenever and wherever you need it.

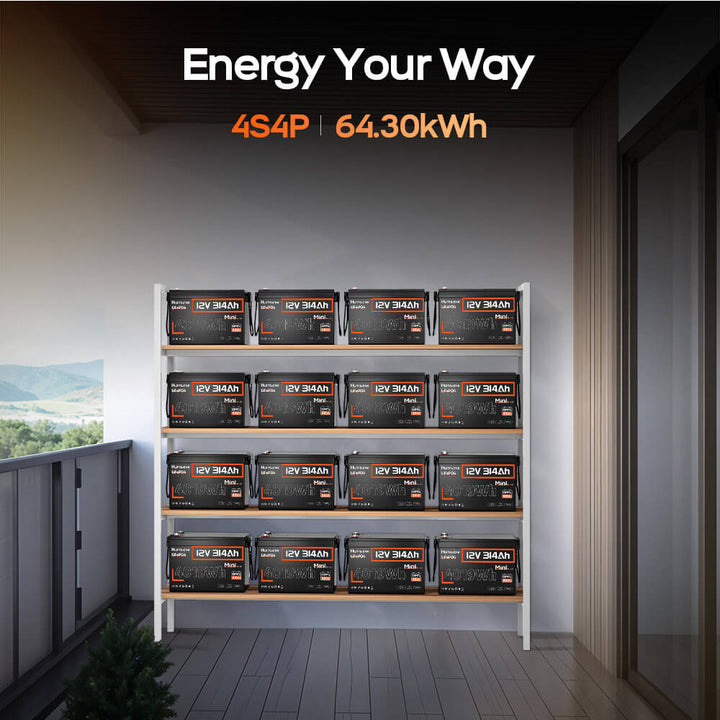

Build Your Own 64.3kWh Energy System

Unlock limitless possibilities with the Humsienk 12V 314Ah LiFePO4 battery! Supporting up to 4 in series and 4 in parallel (4S4P), this flexible design allows you to DIY a powerful energy system with a maximum capacity of 64.3kWh — perfect for creating reliable, scalable storage solutions tailored to your needs.

Power Your Life Anytime, Anywhere

Experience versatile energy with the Humsienk 12V 314Ah LiFePO4 lithium battery. Designed to power your life across multiple scenarios — from RVs and yachts to solar systems, off-grid setups, and camping adventures — it delivers reliable performance wherever your journey takes you.

FAQs

Learn More About Humsienk 12V 314Ah Mini LiFePO4 lithium bluetooth battery
Can l use this battery as a starting battery?

Unfortunately, no. The Humsienk 12V 314Ah Mini LiFePO4 lithium battery is a deep cycle battery and can only be used as a power supply battery, not as a starting battery.

How many amp hours does this 12V 314Ah LiFePO4 lithium battery have?

Humsienk 12V 314Ah Mini LiFePO4 lithium battery is engineered for high-capacity supply. It has a 314Ah capacity and 4019Wh energy, ideal for your RVs, home storage, marine usage, and more.

How many hours will this 12V 314Ah LiFePO4 battery last?

LiFePO4 lithium battery's runtime depends on multiple factors, including the power consumption of the devices it's powering, depth of discharge (DoD), temperature, battery age and condition, internal resistance, inverter efficiency etc. But the following formula based on power consumption and battery capacity can help you estimate runtime:

Runtime (hours) = (Battery Capacity (Ah) x Voltage) / (Load (Watts) x Inverter Efficiency (if applicable))

Example Calculations:
Load: 100W, Inverter Efficiency: 90%
Runtime = (314Ah x 12.8V) /(100W x 90%) = 44.66 h

How to charge Humsienk 12V 314Ah LiFePO4 lithium battery?

Humsienk 12V deep discharge batteries support 3 Charging Ways: LiFePO4 Battery Charging, Solar Charging, Generator/ Alternator Charging. The charging mode needs to be set to LiFePO4 mode, and the charging voltage needs to be set to 14.6V.

Should l charge this 12V deep discharge battery to 100%?

Avoid routinely charging to 100%. When charging, please choose a LiFePO4 charger or select the LiFePO4 mode and ensure the correct charging voltage 14.6V.

How long to charge this 3l4Ah battery with a 400W solar panel?

Under ideal sunlight conditions, a 400W solar panel can typically charge a 12V 314Ah LiFePO4 lithium battery in about 10 - 12 hours.

Does this battery support Bluetooth? What data can it monitor? What mobile phone systems does it support?
  • Yes, Humsienk 12V 314Ah Mini BT LiFePO4 battery supports Bluetooth.
  • You can view real-time voltage, current, remaining capacity (SOC), battery temperature, charge and discharge status, and other data on your phone via Bluetooth.
  • It's compatible with both iOS and Android devices; download the designated app to use it.
Does Bluetooth affect battery life?

No, the Bluetooth module consumes very little power and has almost no impact on battery life.

Does this 314Ah LiFePO4 battery have any requirements for the ambient temperature?

The Humsienk 12V 314Ah Mini LiFePO4 lithium battery is equipped with a 100A BMS, which includes low-temperature protection, ensuring that the battery can be used in temperatures ranging from -20 ℃ to 65 ℃.

Can this 314Ah be used in series or parallel?

Supports multiple batteries connected in series or parallel.

  • Maximum Batteries in series: 4
  • Maximum Batteries in parallel: 4
  • A total energy of batteries in 4 series and 4 parallel: 64.3kWh

Note: It is recommended to use batteries from the same batch and model.

What is the cycle life and warranty of this 12V 314Ah LiFePO4 battery?

Cycle life: Over 6,000 cycles (80% depth of discharge), up to 10 years.

Warranty: 5 years.

What is the difference between the Mini version and the Standard version?

Our Humsienk 12V 314Ah Mini LiFePO4 lithium battery offers the following advantages:

  • Smaller size, taking up approximately 30% less space.
  • Lighter weight, making it easier to handle and install.
  • Uncompromising performance, maintaining 12V 314Ah capacity.
  • Ideal for RVs, boats, or energy storage systems where space is limited.
